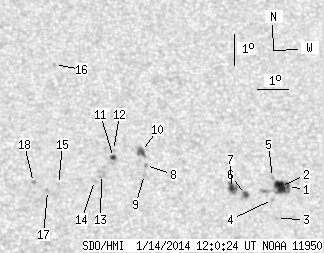

SDO HMI 2014-01-14 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.74 | 63.97 | 10.95 | 35.30 | 16.37 | 27.64 | 15.92 | 323.53 | 0.4437 | -92.0 | -85.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 21.43 | 0.67 | 11.96 | 16.17 | 30.35 | 18.63 | 318.67 | 0.4665 | -702.2 | -742.8 | |
| 9.61 | -1.00 | 5.37 | -1.00 | 16.17 | 30.12 | 18.40 | 319.00 | 0.4642 | -1031.6 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 15.16 | 29.90 | 18.18 | 317.82 | 0.4504 | -883.0 | -694.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 15.75 | 29.82 | 18.10 | 318.84 | 0.4564 | -1001.0 | -758.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 16.45 | 29.89 | 18.17 | 319.76 | 0.4650 | -578.0 | -434.3 | |
| 1.96 | 5.19 | 1.08 | 2.87 | 15.89 | 28.97 | 17.25 | 320.40 | 0.4493 | -979.0 | -721.5 | |
| 2.47 | 7.91 | 1.36 | 4.38 | 16.07 | 28.54 | 16.82 | 321.37 | 0.4472 | -1008.3 | -851.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 16.74 | 25.85 | 14.13 | 326.99 | 0.4308 | 734.0 | 643.1 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 16.45 | 25.79 | 14.07 | 326.70 | 0.4266 | 404.0 | 225.8 | |
| 3.06 | 5.36 | 1.68 | 2.94 | 17.18 | 25.75 | 14.03 | 327.73 | 0.4358 | 925.4 | 637.0 | |
| 1.45 | 4.59 | 0.79 | 2.51 | 16.97 | 24.85 | 13.13 | 329.16 | 0.4256 | 862.5 | 721.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 17.20 | 24.87 | 13.15 | 329.40 | 0.4287 | 723.0 | 514.6 | |
| 0.00 | 5.19 | 0.00 | 2.82 | 16.43 | 24.43 | 12.71 | 329.27 | 0.4149 | 546.0 | 685.0 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 16.24 | 24.20 | 12.48 | 329.49 | 0.4104 | 790.0 | 624.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.09 | 23.06 | 11.34 | 331.64 | 0.3994 | 792.0 | 626.6 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 19.93 | 23.19 | 11.47 | 335.58 | 0.4542 | 714.0 | 584.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 15.90 | 22.71 | 10.99 | 332.15 | 0.3940 | 949.0 | 784.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 16.14 | 22.28 | 10.56 | 333.36 | 0.3944 | 901.0 | 796.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
