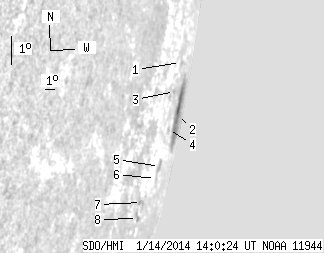

SDO HMI 2014-01-14 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.89 | 59.68 | 152.19 | 380.17 | -11.46 | 96.23 | 85.61 | 258.87 | 0.9961 | -52.5 | -31.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 6.01 | -9.76 | 94.67 | 84.05 | 260.67 | 0.9939 | 238.0 | 291.9 | |
| 23.29 | 42.59 | 150.28 | 317.04 | -11.17 | 96.72 | 86.10 | 259.13 | 0.9970 | -70.1 | -126.0 | |
| 0.00 | 1.36 | 0.00 | 5.56 | -10.65 | 94.45 | 83.83 | 259.79 | 0.9934 | 343.0 | 328.1 | |
| 0.00 | 1.28 | 0.00 | 5.49 | -11.77 | 94.83 | 84.21 | 258.64 | 0.9940 | 192.0 | 203.2 | |
| 0.00 | 4.59 | 0.00 | 18.75 | -12.91 | 94.57 | 83.95 | 257.51 | 0.9933 | 194.0 | 166.9 | |
| 0.00 | 0.68 | 0.00 | 2.72 | -13.30 | 94.26 | 83.64 | 257.13 | 0.9927 | 125.0 | 151.5 | |
| 0.00 | 4.42 | 0.00 | 13.98 | -14.17 | 92.47 | 81.85 | 256.34 | 0.9885 | 210.0 | 162.9 | |
| 0.60 | 3.40 | 1.91 | 10.62 | -14.66 | 92.48 | 81.86 | 255.84 | 0.9884 | 485.4 | 369.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
