SDO HMI 2014-01-14 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.54 | 210.99 | 21.79 | 129.51 | 5.93 | 45.27 | 34.65 | 286.50 | 0.5918 | -890.3 | -383.1 | |
|
previous
or next observation for the same group /

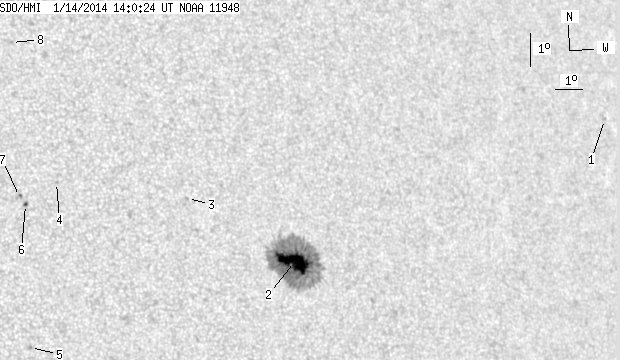

back to the solar disc SDO HMI 2014-01-14 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.98 | 10.80 | 58.48 | 47.86 | 288.13 | 0.7687 | -449.0 | -459.2 | |
| 34.94 | 201.97 | 21.46 | 124.13 | 5.84 | 45.45 | 34.83 | 286.23 | 0.5940 | -1159.9 | -390.0 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 7.58 | 41.79 | 31.17 | 291.09 | 0.5520 | -742.0 | -648.7 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 7.89 | 37.35 | 26.73 | 294.83 | 0.4929 | 688.0 | 591.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 2.92 | 36.25 | 25.63 | 285.67 | 0.4506 | 723.0 | 614.9 | |
| 0.60 | 1.53 | 0.33 | 0.86 | 7.19 | 36.28 | 25.65 | 294.39 | 0.4736 | -757.0 | -693.4 | |
| 0.00 | 2.04 | 0.00 | 1.15 | 7.43 | 36.09 | 25.47 | 295.01 | 0.4725 | -691.0 | -733.4 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 12.11 | 36.22 | 25.60 | 303.36 | 0.5079 | 736.0 | 598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
