SDO HMI 2014-01-14 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.76 | 449.84 | 46.06 | 228.27 | -16.41 | 12.75 | 3.79 | 196.84 | 0.2180 | 982.0 | 395.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

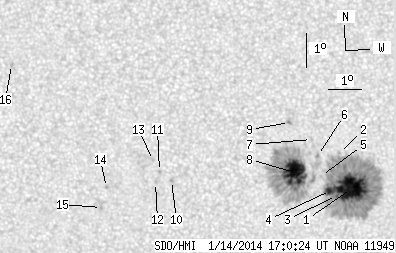

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.63 | 268.88 | 25.22 | 136.63 | -16.61 | 13.61 | 4.64 | 200.25 | 0.2250 | 1421.2 | 442.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -15.53 | 13.21 | 4.25 | 200.43 | 0.2054 | 79.0 | 109.4 | |
| 2.04 | -1.00 | 1.04 | -1.00 | -16.82 | 13.15 | 4.18 | 198.08 | 0.2259 | 932.0 | 999999 | |
| 4.76 | -1.00 | 2.42 | -1.00 | -16.67 | 12.96 | 3.99 | 197.53 | 0.2224 | 1204.5 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -16.22 | 12.67 | 3.71 | 196.97 | 0.2137 | 633.0 | 488.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.62 | 12.54 | 3.57 | 197.27 | 0.2032 | 721.0 | 392.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -15.14 | 12.35 | 3.38 | 197.12 | 0.1944 | -487.0 | -362.1 | |
| 34.33 | 164.61 | 17.38 | 83.35 | -16.13 | 11.84 | 2.88 | 193.43 | 0.2085 | 1349.2 | 421.6 | |
| 0.00 | 1.61 | 0.00 | 0.81 | -14.63 | 11.67 | 2.70 | 194.53 | 0.1828 | -928.0 | -736.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -16.38 | 8.07 | -0.90 | 175.81 | 0.2074 | -997.0 | -751.4 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -16.10 | 7.70 | -1.27 | 173.98 | 0.2033 | -975.0 | -840.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -16.43 | 7.58 | -1.39 | 173.58 | 0.2092 | -822.0 | -672.8 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.77 | 7.52 | -1.45 | 172.91 | 0.1980 | -857.0 | -654.6 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -16.58 | 6.07 | -2.90 | 166.96 | 0.2160 | -912.0 | -774.5 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -17.18 | 5.90 | -3.07 | 166.91 | 0.2266 | -867.0 | -709.2 | |
| 0.00 | 1.61 | 0.00 | 0.81 | -12.87 | 3.24 | -5.73 | 146.35 | 0.1764 | -746.0 | -626.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
