group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11950	15.37	54.93	8.73	30.84	16.49	27.51	18.54	319.53	0.4707	-21.2	142.6

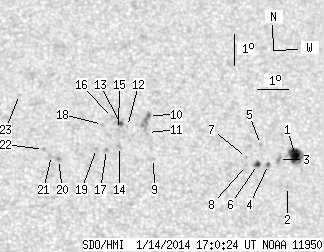

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-01-14 17:00:24 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	11.30	17.93	6.44	10.21	16.20	30.37	21.40	314.82	0.4961	-966.9	-629.1
2	0.00	0.93	0.00	0.53	15.22	30.00	21.03	313.82	0.4819	-842.0	-681.6
3	0.00	2.97	0.00	1.69	16.06	29.80	20.83	315.38	0.4884	-1001.0	-717.0
4	0.51	1.53	0.29	0.86	15.90	29.45	20.48	315.60	0.4830	-994.8	-867.7
5	0.00	1.19	0.00	0.67	16.52	29.26	20.29	316.80	0.4876	-655.0	-544.4
6	1.78	2.80	1.01	1.58	15.89	29.09	20.12	316.09	0.4790	-1020.6	-860.1
7	0.00	1.02	0.00	0.57	16.10	28.75	19.78	316.88	0.4777	-716.0	-564.8
8	0.00	0.76	0.00	0.43	15.84	28.72	19.76	316.54	0.4747	-615.0	-572.3
9	0.00	0.76	0.00	0.42	15.99	25.74	16.77	321.35	0.4459	740.0	599.6
10	0.59	9.01	0.33	5.01	17.35	25.70	16.73	323.32	0.4619	913.3	727.2
11	0.00	0.34	0.00	0.19	16.81	25.62	16.65	322.71	0.4546	636.0	711.8
12	0.00	0.68	0.00	0.38	16.98	24.99	16.02	323.99	0.4509	576.0	460.5
13	1.19	2.97	0.66	1.65	17.07	24.77	15.81	324.48	0.4501	988.4	705.2
14	0.00	1.87	0.00	1.03	16.35	24.68	15.71	323.64	0.4402	841.0	694.2
15	0.00	0.59	0.00	0.33	16.88	24.69	15.73	324.36	0.4470	873.0	742.9
16	0.00	2.29	0.00	1.27	17.26	24.53	15.57	325.14	0.4503	584.0	494.0
17	0.00	1.10	0.00	0.61	16.24	24.26	15.29	324.23	0.4350	918.0	815.4
18	0.00	0.93	0.00	0.52	17.03	24.19	15.23	325.42	0.4443	706.0	547.9
19	0.00	1.36	0.00	0.75	16.27	23.94	14.97	324.83	0.4324	832.0	665.1
20	0.00	1.19	0.00	0.65	15.90	22.71	13.74	326.59	0.4166	1011.0	900.1
21	0.00	0.42	0.00	0.23	16.02	22.50	13.53	327.16	0.4164	729.0	667.4
22	0.00	1.44	0.00	0.79	16.20	22.26	13.29	327.87	0.4168	675.0	581.0
23	0.00	0.85	0.00	0.47	17.94	21.62	12.65	331.24	0.4351	773.0	658.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
