SDO HMI 2014-01-14 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.86 | 224.13 | 29.39 | 122.55 | -17.53 | 30.66 | 21.69 | 236.71 | 0.4232 | 214.2 | 193.2 | |
|
previous
or next observation for the same group /

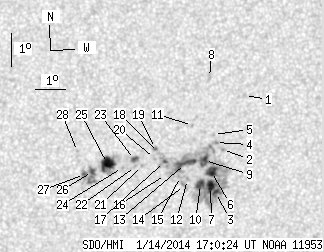

back to the solar disc SDO HMI 2014-01-14 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.84 | -15.26 | 32.53 | 23.57 | 243.41 | 0.4332 | 658.0 | 488.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.90 | 32.00 | 23.03 | 239.46 | 0.4365 | 715.0 | 514.4 | |
| 2.46 | 150.67 | 1.36 | 82.78 | -18.21 | 31.94 | 22.97 | 236.76 | 0.4452 | 819.2 | 369.7 | |
| 0.00 | 2.46 | 0.00 | 1.35 | -16.70 | 31.74 | 22.77 | 239.63 | 0.4316 | 1021.0 | 877.5 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -16.46 | 31.65 | 22.68 | 240.04 | 0.4286 | 786.0 | 710.8 | |
| 7.14 | -3.00 | 3.93 | -3.00 | -17.58 | 31.72 | 22.75 | 237.80 | 0.4376 | 1087.8 | 999999 | |
| 6.37 | -3.00 | 3.51 | -3.00 | -18.03 | 31.75 | 22.78 | 236.92 | 0.4413 | 1119.3 | 999999 | |
| 0.00 | 3.31 | 0.00 | 1.80 | -14.75 | 31.32 | 22.35 | 243.44 | 0.4129 | 738.0 | 559.9 | |
| 5.86 | -3.00 | 3.22 | -3.00 | -17.25 | 31.44 | 22.48 | 238.19 | 0.4315 | 1166.1 | 999999 | |
| 5.44 | -3.00 | 2.99 | -3.00 | -17.98 | 31.41 | 22.44 | 236.66 | 0.4364 | 1072.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -16.21 | 30.92 | 21.95 | 239.85 | 0.4169 | 900.0 | 679.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -17.84 | 30.95 | 21.98 | 236.46 | 0.4294 | 875.0 | 731.6 | |
| 8.24 | -3.00 | 4.50 | -3.00 | -17.36 | 30.82 | 21.86 | 237.31 | 0.4240 | 857.3 | 999999 | |
| 0.00 | 4.50 | 0.00 | 2.47 | -18.03 | 30.88 | 21.91 | 236.00 | 0.4298 | 796.0 | 665.9 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -17.76 | 30.71 | 21.74 | 236.36 | 0.4255 | 544.0 | 599.5 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -17.71 | 30.20 | 21.23 | 235.89 | 0.4185 | 578.0 | 408.0 | |
| 0.85 | -3.00 | 0.46 | -3.00 | -17.32 | 30.12 | 21.15 | 236.62 | 0.4143 | -676.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -17.05 | 29.89 | 20.92 | 236.93 | 0.4092 | -625.0 | -580.0 | |
| 0.51 | 1.78 | 0.28 | 0.97 | -16.93 | 29.78 | 20.81 | 237.05 | 0.4068 | -1087.3 | -888.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -17.24 | 29.78 | 20.81 | 236.41 | 0.4092 | -935.0 | -728.0 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -17.46 | 29.41 | 20.44 | 235.50 | 0.4061 | -574.0 | -414.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.49 | 29.18 | 20.22 | 235.15 | 0.4034 | -738.0 | -553.2 | |
| 1.87 | 3.82 | 1.01 | 2.07 | -17.28 | 29.13 | 20.16 | 235.53 | 0.4009 | -1037.7 | -886.1 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -17.53 | 28.76 | 19.79 | 234.53 | 0.3982 | -771.0 | -647.4 | |
| 12.07 | 22.60 | 6.49 | 12.16 | -17.42 | 28.26 | 19.29 | 234.12 | 0.3907 | -1197.7 | -482.8 | |
| 2.12 | 17.00 | 1.14 | 9.12 | -17.68 | 27.79 | 18.83 | 232.96 | 0.3869 | -1203.3 | -761.9 | |
| 0.93 | -26.00 | 0.50 | -26.00 | -17.77 | 27.54 | 18.57 | 232.40 | 0.3845 | -1145.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -17.09 | 27.24 | 18.27 | 233.51 | 0.3745 | -808.0 | -616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
