SDO HMI 2014-01-14 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 88.95 | 0.00 | 507.91 | -10.51 | 93.86 | 85.45 | 259.83 | 0.9952 | 98.2 | 79.2 | |
|
previous
or next observation for the same group /

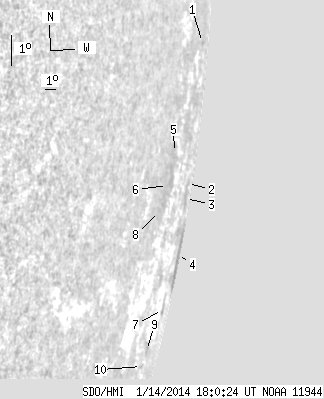

back to the solar disc SDO HMI 2014-01-14 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 8.79 | -4.93 | 93.88 | 85.47 | 265.43 | 0.9968 | 128.0 | 111.0 | |
| 0.00 | 1.95 | 0.00 | 13.19 | -9.08 | 94.70 | 86.28 | 261.22 | 0.9974 | 99.0 | 147.6 | |
| 0.00 | 6.46 | 0.00 | 43.33 | -9.51 | 94.88 | 86.46 | 260.77 | 0.9976 | 180.0 | 182.6 | |
| 0.00 | 26.17 | 0.00 | 266.88 | -11.12 | 95.90 | 87.48 | 259.09 | 0.9986 | 88.0 | 112.6 | |
| 0.00 | 10.11 | 0.00 | 32.20 | -8.51 | 90.00 | 81.58 | 262.08 | 0.9885 | -42.0 | -58.1 | |
| 0.00 | 32.63 | 0.00 | 99.20 | -9.53 | 89.64 | 81.23 | 261.07 | 0.9874 | -83.0 | -62.6 | |
| 0.00 | 3.23 | 0.00 | 19.15 | -12.90 | 94.41 | 86.00 | 257.40 | 0.9967 | 188.0 | 182.0 | |
| 0.00 | 2.97 | 0.00 | 8.54 | -10.36 | 89.00 | 80.59 | 260.26 | 0.9855 | -35.0 | -49.5 | |
| 0.00 | 2.38 | 0.00 | 10.09 | -14.30 | 92.53 | 84.12 | 256.11 | 0.9935 | 85.0 | 196.6 | |
| 0.00 | 1.61 | 0.00 | 6.54 | -14.81 | 92.31 | 83.89 | 255.61 | 0.9930 | 374.0 | 358.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
