SDO HMI 2014-01-14 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.41 | 215.56 | 21.75 | 135.94 | 5.94 | 45.19 | 36.77 | 285.58 | 0.6201 | -822.4 | -373.4 | |
|
previous
or next observation for the same group /

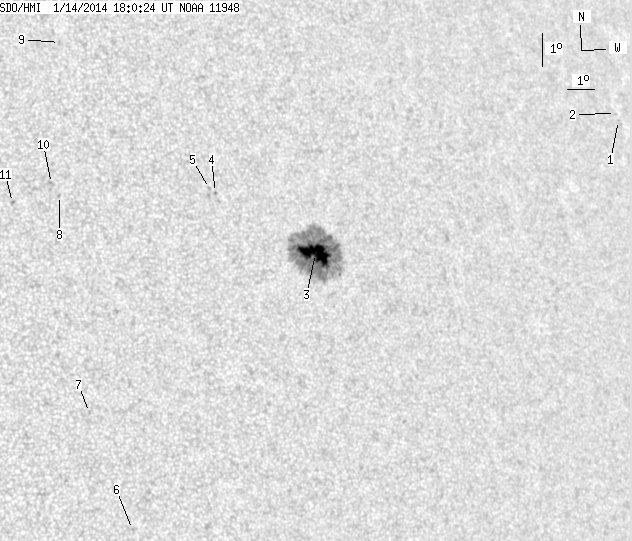

back to the solar disc SDO HMI 2014-01-14 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.59 | 0.00 | 0.48 | 10.60 | 58.66 | 50.24 | 287.12 | 0.7930 | -364.0 | -348.6 | |
| 0.00 | 0.68 | 0.00 | 0.55 | 10.81 | 58.57 | 50.15 | 287.40 | 0.7926 | -548.0 | -530.0 | |
| 34.41 | 203.60 | 21.75 | 128.70 | 5.87 | 45.44 | 37.02 | 285.34 | 0.6234 | -1125.6 | -387.3 | |
| 0.00 | 1.10 | 0.00 | 0.67 | 7.54 | 41.94 | 33.52 | 289.67 | 0.5836 | -715.0 | -582.2 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 7.66 | 41.73 | 33.32 | 289.97 | 0.5814 | -704.0 | -575.4 | |
| 0.00 | 0.93 | 0.00 | 0.54 | -2.61 | 38.74 | 30.33 | 272.53 | 0.5070 | 504.0 | 470.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 0.80 | 37.26 | 28.84 | 279.71 | 0.4914 | 655.0 | 578.5 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 7.24 | 36.50 | 28.09 | 292.58 | 0.5079 | -921.0 | -720.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 11.90 | 36.93 | 28.52 | 300.30 | 0.5433 | 562.0 | 445.9 | |
| 0.00 | 2.46 | 0.00 | 1.41 | 7.59 | 36.26 | 27.84 | 293.41 | 0.5065 | -870.0 | -663.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 6.97 | 34.91 | 26.50 | 293.29 | 0.4841 | 773.0 | 565.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
