SDO HMI 2014-01-14 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.50 | 218.18 | 22.15 | 140.16 | 6.09 | 45.38 | 38.07 | 285.31 | 0.6376 | -716.8 | -340.2 | |
|
previous
or next observation for the same group /

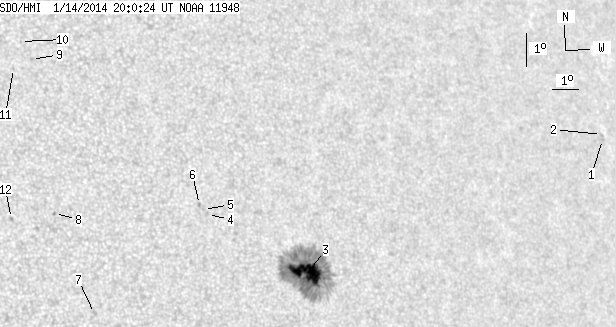

back to the solar disc SDO HMI 2014-01-14 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.62 | 10.63 | 58.65 | 51.34 | 286.84 | 0.8041 | -502.0 | -381.9 | |
| 0.00 | 1.27 | 0.00 | 1.06 | 10.79 | 58.64 | 51.33 | 287.02 | 0.8044 | -424.0 | -450.5 | |
| 34.50 | 203.34 | 22.15 | 130.56 | 5.89 | 45.49 | 38.18 | 284.91 | 0.6387 | -1067.8 | -365.7 | |
| 0.00 | 1.61 | 0.00 | 1.00 | 7.46 | 41.93 | 34.62 | 288.97 | 0.5980 | -622.0 | -500.1 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 7.61 | 41.80 | 34.49 | 289.27 | 0.5969 | -644.0 | -469.7 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 7.75 | 41.67 | 34.36 | 289.57 | 0.5958 | -690.0 | -608.3 | |
| 0.00 | 2.12 | 0.00 | 1.24 | 4.32 | 37.74 | 30.43 | 285.78 | 0.5270 | 610.0 | 546.8 | |
| 0.00 | 1.10 | 0.00 | 0.64 | 7.27 | 36.55 | 29.24 | 291.84 | 0.5241 | -763.0 | -571.5 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 11.93 | 36.21 | 28.90 | 300.05 | 0.5484 | 693.0 | 625.4 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 12.48 | 35.89 | 28.59 | 301.19 | 0.5483 | 677.0 | 531.7 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 11.63 | 35.56 | 28.25 | 300.12 | 0.5380 | 733.0 | 498.1 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 7.06 | 35.08 | 27.77 | 292.52 | 0.5026 | 822.0 | 624.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
