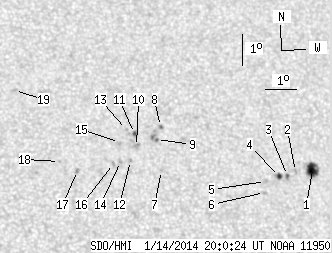

SDO HMI 2014-01-14 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.19 | 54.18 | 8.16 | 30.69 | 16.41 | 27.37 | 20.06 | 317.26 | 0.4856 | 34.9 | 161.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.20 | 15.89 | 5.89 | 9.17 | 16.18 | 30.53 | 23.22 | 312.51 | 0.5159 | -959.8 | -567.7 | |
| 0.00 | 2.12 | 0.00 | 1.22 | 16.10 | 29.96 | 22.65 | 313.10 | 0.5087 | -833.0 | -701.0 | |
| 0.68 | 2.46 | 0.39 | 1.41 | 15.96 | 29.67 | 22.36 | 313.25 | 0.5043 | -798.0 | -626.4 | |
| 1.78 | 3.91 | 1.02 | 2.23 | 15.92 | 29.40 | 22.09 | 313.53 | 0.5009 | -910.3 | -726.6 | |
| 0.00 | 2.21 | 0.00 | 1.26 | 15.75 | 28.92 | 21.61 | 313.89 | 0.4939 | -926.0 | -689.8 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 15.41 | 28.85 | 21.54 | 313.45 | 0.4896 | -767.0 | -590.3 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 16.01 | 25.56 | 18.25 | 319.04 | 0.4610 | 650.0 | 525.0 | |
| 0.34 | 1.78 | 0.19 | 1.00 | 17.40 | 25.66 | 18.35 | 320.87 | 0.4781 | 801.2 | 643.9 | |
| 0.34 | 5.69 | 0.19 | 3.19 | 16.98 | 25.49 | 18.18 | 320.55 | 0.4716 | 897.2 | 733.7 | |
| 0.00 | 3.06 | 0.00 | 1.71 | 16.75 | 24.82 | 17.51 | 321.26 | 0.4623 | 809.0 | 708.9 | |
| 0.85 | 1.70 | 0.48 | 0.95 | 17.16 | 24.79 | 17.49 | 321.87 | 0.4669 | 841.0 | 752.0 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 16.30 | 24.58 | 17.27 | 320.99 | 0.4547 | 779.0 | 615.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 17.28 | 24.55 | 17.24 | 322.43 | 0.4660 | 640.0 | 543.8 | |
| 0.00 | 1.78 | 0.00 | 0.99 | 16.26 | 24.26 | 16.95 | 321.46 | 0.4511 | 877.0 | 737.8 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 16.86 | 24.28 | 16.97 | 322.28 | 0.4585 | 766.0 | 668.0 | |
| 0.00 | 1.61 | 0.00 | 0.89 | 16.19 | 24.03 | 16.72 | 321.74 | 0.4480 | 874.0 | 695.9 | |
| 0.00 | 1.95 | 0.00 | 1.07 | 15.95 | 22.86 | 15.55 | 323.38 | 0.4339 | 835.0 | 710.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 16.22 | 22.31 | 15.00 | 324.74 | 0.4322 | 787.0 | 598.5 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 18.45 | 21.05 | 13.74 | 329.85 | 0.4506 | 811.0 | 675.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
