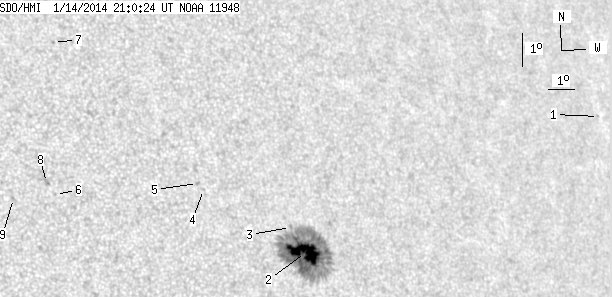

SDO HMI 2014-01-14 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.39 | 209.44 | 21.60 | 135.16 | 6.01 | 45.19 | 38.44 | 285.06 | 0.6423 | -839.5 | -359.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.29 | 10.76 | 58.72 | 51.96 | 286.81 | 0.8105 | -549.0 | -541.0 | |
| 33.39 | 198.16 | 21.60 | 128.26 | 5.91 | 45.47 | 38.72 | 284.75 | 0.6457 | -1063.8 | -367.0 | |
| 0.00 | 1.95 | 0.00 | 1.26 | 6.64 | 44.97 | 38.21 | 286.04 | 0.6417 | -82.0 | -83.6 | |
| 0.00 | 0.93 | 0.00 | 0.58 | 7.63 | 41.83 | 35.08 | 289.01 | 0.6047 | -555.0 | -461.7 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 7.80 | 41.63 | 34.88 | 289.39 | 0.6028 | -718.0 | -579.4 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 7.26 | 36.58 | 29.82 | 291.44 | 0.5321 | -771.0 | -557.5 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 11.89 | 36.97 | 30.21 | 298.91 | 0.5647 | 685.0 | 564.8 | |
| 0.00 | 3.23 | 0.00 | 1.88 | 7.61 | 36.30 | 29.54 | 292.25 | 0.5301 | -669.0 | -568.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 7.08 | 35.13 | 28.38 | 292.12 | 0.5112 | 787.0 | 594.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
