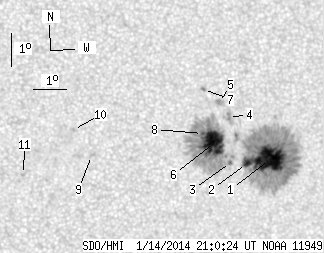

SDO HMI 2014-01-14 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.76 | 452.39 | 42.12 | 230.23 | -16.38 | 12.79 | 6.04 | 205.94 | 0.2308 | 1122.8 | 419.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.36 | 271.92 | 22.62 | 138.65 | -16.59 | 13.56 | 6.80 | 208.42 | 0.2395 | 1417.7 | 464.3 | |
| 4.33 | -1.00 | 2.21 | -1.00 | -16.71 | 12.85 | 6.09 | 205.65 | 0.2359 | 1141.2 | 999999 | |
| 0.68 | 160.77 | 0.35 | 81.60 | -16.69 | 12.35 | 5.60 | 203.86 | 0.2320 | 750.6 | 432.9 | |
| 0.00 | 7.82 | 0.00 | 3.96 | -15.33 | 12.26 | 5.50 | 206.17 | 0.2105 | 798.0 | 463.0 | |
| 0.00 | 4.33 | 0.00 | 2.19 | -14.89 | 11.97 | 5.21 | 205.96 | 0.2015 | -588.0 | -402.2 | |
| 31.95 | -3.00 | 16.21 | -3.00 | -16.09 | 11.84 | 5.09 | 202.98 | 0.2192 | 1367.2 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -14.50 | 11.47 | 4.71 | 204.62 | 0.1919 | -836.0 | -720.1 | |
| 1.44 | -3.00 | 0.73 | -3.00 | -15.82 | 11.47 | 4.71 | 201.94 | 0.2125 | 1180.9 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.25 | -16.49 | 8.07 | 1.31 | 186.03 | 0.2096 | -948.0 | -722.1 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -15.71 | 7.51 | 0.75 | 183.74 | 0.1954 | -954.0 | -754.4 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -17.06 | 5.97 | -0.78 | 176.56 | 0.2186 | -949.0 | -754.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
