SDO HMI 2014-01-14 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.86 | 0.00 | 5.67 | -9.02 | 23.57 | 17.36 | 253.84 | 0.3101 | 784.9 | 650.7 | |
|
previous
or next observation for the same group /

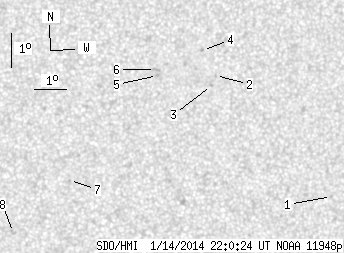

back to the solar disc SDO HMI 2014-01-14 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.51 | -10.96 | 29.54 | 23.33 | 253.06 | 0.4082 | 742.0 | 573.2 | |
| 0.00 | 0.59 | 0.00 | 0.31 | -7.49 | 25.60 | 19.39 | 260.32 | 0.3354 | 795.0 | 681.0 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -7.79 | 25.48 | 19.28 | 259.39 | 0.3343 | 767.0 | 593.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -6.76 | 25.16 | 18.95 | 262.36 | 0.3269 | 805.0 | 685.6 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -7.53 | 23.78 | 17.57 | 259.39 | 0.3059 | 940.0 | 774.3 | |
| 0.00 | 2.80 | 0.00 | 1.46 | -7.36 | 23.71 | 17.50 | 259.92 | 0.3044 | 870.0 | 707.6 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -10.69 | 21.19 | 14.98 | 246.58 | 0.2781 | 774.0 | 578.4 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -12.26 | 19.53 | 13.32 | 238.73 | 0.2646 | 586.0 | 590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
