SDO HMI 2014-01-14 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.23 | 230.85 | 28.46 | 128.68 | -17.51 | 30.60 | 24.39 | 239.49 | 0.4588 | 169.9 | 226.5 | |
|
previous
or next observation for the same group /

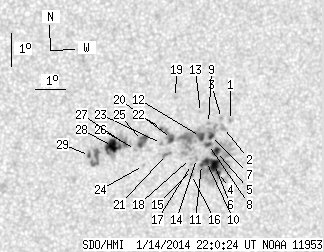

back to the solar disc SDO HMI 2014-01-14 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.15 | -16.60 | 32.11 | 25.90 | 242.62 | 0.4734 | 971.0 | 691.6 | |
| 0.00 | 3.65 | 0.00 | 2.05 | -16.82 | 31.90 | 25.69 | 242.03 | 0.4719 | 723.0 | 693.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -16.55 | 31.79 | 25.59 | 242.47 | 0.4688 | 834.0 | 637.2 | |
| 1.87 | 152.70 | 1.05 | 85.60 | -18.18 | 31.93 | 25.73 | 239.44 | 0.4810 | 787.3 | 392.7 | |
| 4.67 | -4.00 | 2.63 | -4.00 | -17.55 | 31.77 | 25.56 | 240.50 | 0.4746 | 997.1 | 999999 | |
| 7.82 | -4.00 | 4.40 | -4.00 | -17.94 | 31.76 | 25.55 | 239.74 | 0.4771 | 981.7 | 999999 | |
| 2.55 | -4.00 | 1.43 | -4.00 | -17.07 | 31.53 | 25.32 | 241.23 | 0.4684 | 1064.6 | 999999 | |
| 2.04 | -4.00 | 1.14 | -4.00 | -17.35 | 31.46 | 25.26 | 240.64 | 0.4693 | 993.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -16.71 | 31.37 | 25.17 | 241.81 | 0.4641 | 1007.0 | 877.9 | |
| 3.06 | -4.00 | 1.72 | -4.00 | -17.86 | 31.47 | 25.27 | 239.65 | 0.4727 | 1083.0 | 999999 | |
| 0.93 | -4.00 | 0.52 | -4.00 | -17.96 | 31.31 | 25.11 | 239.33 | 0.4713 | 944.2 | 999999 | |
| 3.74 | -4.00 | 2.09 | -4.00 | -17.11 | 31.16 | 24.95 | 240.83 | 0.4636 | 1090.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -16.39 | 31.06 | 24.85 | 242.19 | 0.4577 | 860.0 | 743.9 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -17.78 | 31.12 | 24.91 | 239.49 | 0.4675 | 870.0 | 766.7 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -18.12 | 31.03 | 24.82 | 238.77 | 0.4686 | 774.0 | 623.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.27 | 31.02 | 24.81 | 238.46 | 0.4695 | 725.0 | 608.8 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -17.97 | 30.97 | 24.77 | 239.01 | 0.4668 | 782.0 | 658.5 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -17.79 | 30.91 | 24.71 | 239.30 | 0.4648 | 627.0 | 580.0 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -15.97 | 30.16 | 23.95 | 242.30 | 0.4427 | 846.0 | 642.5 | |
| 3.14 | -4.00 | 1.74 | -4.00 | -17.20 | 30.19 | 23.98 | 239.79 | 0.4511 | -784.2 | 999999 | |
| 0.00 | 3.74 | 0.00 | 2.08 | -17.69 | 30.08 | 23.88 | 238.73 | 0.4531 | 822.0 | 662.9 | |
| 0.68 | -4.00 | 0.38 | -4.00 | -16.91 | 29.81 | 23.60 | 240.04 | 0.4441 | -983.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.37 | 29.87 | 23.66 | 239.18 | 0.4480 | -832.0 | -564.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -18.05 | 29.36 | 23.15 | 237.31 | 0.4460 | -568.0 | -471.6 | |
| 5.27 | 8.24 | 2.90 | 4.54 | -17.29 | 29.22 | 23.01 | 238.70 | 0.4388 | -877.5 | -714.6 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -17.57 | 29.02 | 22.82 | 237.93 | 0.4381 | -585.0 | -469.6 | |
| 1.44 | 32.04 | 0.79 | 17.55 | -17.40 | 28.63 | 22.43 | 237.88 | 0.4317 | -833.1 | -460.3 | |
| 13.34 | -27.00 | 7.30 | -27.00 | -17.50 | 28.24 | 22.04 | 237.26 | 0.4272 | -1073.9 | 999999 | |
| 0.68 | 13.17 | 0.37 | 7.19 | -17.80 | 27.51 | 21.31 | 235.85 | 0.4199 | -1039.1 | -841.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
