SDO HMI 2014-01-15 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.27 | 242.36 | 22.62 | 136.26 | -17.60 | 30.77 | 25.67 | 240.47 | 0.4763 | 219.8 | 200.5 | |
|
previous
or next observation for the same group /

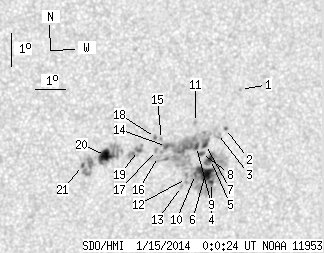

back to the solar disc SDO HMI 2014-01-15 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.63 | -15.36 | 32.51 | 27.41 | 246.14 | 0.4874 | 705.0 | 524.9 | |
| 0.59 | 1.78 | 0.34 | 1.01 | -16.55 | 32.17 | 27.06 | 243.62 | 0.4889 | 675.6 | 558.4 | |
| 0.00 | 6.88 | 0.00 | 3.90 | -16.71 | 31.92 | 26.81 | 243.13 | 0.4863 | 484.0 | 662.9 | |
| 1.53 | 162.76 | 0.87 | 92.01 | -18.19 | 31.94 | 26.84 | 240.35 | 0.4956 | 719.6 | 425.5 | |
| 2.89 | -4.00 | 1.64 | -4.00 | -17.50 | 31.80 | 26.69 | 241.53 | 0.4893 | 928.7 | 999999 | |
| 13.00 | -4.00 | 7.38 | -4.00 | -17.93 | 31.69 | 26.59 | 240.65 | 0.4906 | 983.6 | 999999 | |
| 2.89 | -4.00 | 1.63 | -4.00 | -17.05 | 31.56 | 26.45 | 242.19 | 0.4834 | 984.4 | 999999 | |
| 1.53 | 2.97 | 0.86 | 1.68 | -17.33 | 31.46 | 26.35 | 241.59 | 0.4838 | 956.3 | 802.1 | |
| 2.21 | -4.00 | 1.25 | -4.00 | -17.12 | 31.26 | 26.15 | 241.83 | 0.4798 | 1099.1 | 999999 | |
| 0.68 | -4.00 | 0.38 | -4.00 | -17.97 | 31.35 | 26.25 | 240.29 | 0.4863 | 944.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -16.40 | 31.12 | 26.01 | 243.12 | 0.4736 | 934.0 | 796.2 | |
| 0.00 | 3.74 | 0.00 | 2.11 | -18.10 | 31.06 | 25.96 | 239.81 | 0.4833 | 738.0 | 624.0 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -18.35 | 30.93 | 25.82 | 239.23 | 0.4832 | 572.0 | 466.5 | |
| 1.61 | -4.00 | 0.90 | -4.00 | -17.15 | 30.23 | 25.13 | 240.93 | 0.4662 | -708.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -16.95 | 30.03 | 24.93 | 241.17 | 0.4622 | -741.0 | -603.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.46 | 30.01 | 24.90 | 240.13 | 0.4651 | 534.0 | 508.5 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -17.29 | 29.91 | 24.81 | 240.40 | 0.4627 | -840.0 | -624.9 | |
| 0.42 | 1.36 | 0.24 | 0.76 | -16.90 | 29.82 | 24.72 | 241.09 | 0.4589 | -938.0 | -792.5 | |
| 1.19 | 10.37 | 0.66 | 5.76 | -17.30 | 29.30 | 24.20 | 239.82 | 0.4546 | -827.6 | -657.2 | |
| 10.88 | 28.30 | 6.00 | 15.62 | -17.49 | 28.21 | 23.11 | 238.42 | 0.4413 | -1081.7 | -590.6 | |
| 0.85 | 16.40 | 0.47 | 9.02 | -17.81 | 27.48 | 22.38 | 237.01 | 0.4340 | -922.6 | -768.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
