SDO HMI 2014-01-15 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.45 | 456.79 | 39.63 | 233.80 | -16.39 | 12.69 | 8.68 | 214.97 | 0.2534 | 988.5 | 411.2 | |
|
previous
or next observation for the same group /

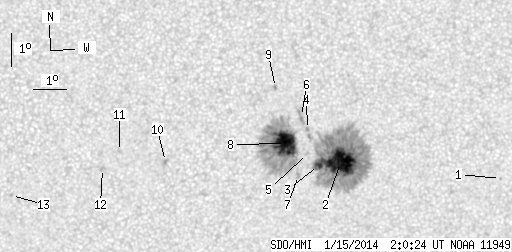

back to the solar disc SDO HMI 2014-01-15 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.01 | 18.55 | 14.54 | 227.73 | 0.3258 | -716.0 | -563.3 | |
| 37.83 | 272.72 | 19.42 | 139.95 | -16.60 | 13.48 | 9.47 | 216.93 | 0.2636 | 1345.4 | 451.8 | |
| 3.66 | -2.00 | 1.87 | -2.00 | -16.70 | 12.80 | 8.79 | 214.71 | 0.2582 | 1110.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -15.62 | 12.41 | 8.40 | 216.13 | 0.2398 | 578.0 | 420.7 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -16.34 | 12.44 | 8.43 | 214.45 | 0.2499 | 904.0 | 678.9 | |
| 0.00 | 6.38 | 0.00 | 3.25 | -15.23 | 12.21 | 8.20 | 216.49 | 0.2325 | 593.0 | 539.6 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -17.01 | 12.19 | 8.18 | 212.16 | 0.2568 | 727.0 | 558.3 | |
| 35.96 | 162.03 | 18.34 | 82.62 | -16.05 | 11.75 | 7.74 | 212.91 | 0.2393 | 1266.1 | 408.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -14.37 | 11.38 | 7.37 | 215.99 | 0.2125 | -928.0 | -790.7 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -16.61 | 8.06 | 4.05 | 197.93 | 0.2208 | -926.0 | -742.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -16.32 | 6.64 | 2.63 | 192.17 | 0.2096 | -864.0 | -692.4 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -16.83 | 6.12 | 2.11 | 189.41 | 0.2166 | -830.0 | -730.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.65 | 3.31 | -0.70 | 177.07 | 0.2279 | -903.0 | -656.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
