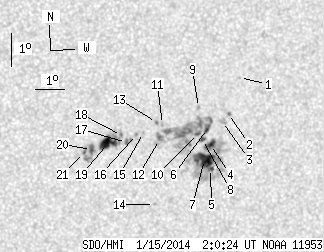

SDO HMI 2014-01-15 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.37 | 225.75 | 26.84 | 128.16 | -17.64 | 30.93 | 26.92 | 241.42 | 0.4932 | 139.3 | 209.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-15 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.49 | -15.40 | 32.47 | 28.46 | 246.75 | 0.5020 | 498.0 | 402.6 | |
| 0.34 | 1.45 | 0.19 | 0.83 | -16.49 | 32.25 | 28.24 | 244.55 | 0.5045 | 715.5 | 599.3 | |
| 0.00 | 4.17 | 0.00 | 2.38 | -16.74 | 32.08 | 28.07 | 243.97 | 0.5035 | 770.0 | 663.7 | |
| 5.02 | 160.76 | 2.87 | 91.80 | -17.45 | 31.77 | 27.76 | 242.45 | 0.5033 | 895.3 | 387.6 | |
| 1.70 | -4.00 | 0.98 | -4.00 | -18.17 | 31.90 | 27.89 | 241.21 | 0.5092 | 698.1 | 999999 | |
| 2.81 | -4.00 | 1.60 | -4.00 | -16.97 | 31.59 | 27.58 | 243.21 | 0.4982 | 911.4 | 999999 | |
| 18.79 | -4.00 | 10.76 | -4.00 | -17.91 | 31.64 | 27.63 | 241.50 | 0.5042 | 942.9 | 999999 | |
| 1.53 | 2.64 | 0.87 | 1.50 | -17.31 | 31.47 | 27.46 | 242.49 | 0.4985 | 879.3 | 730.3 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -16.35 | 31.18 | 27.17 | 244.10 | 0.4892 | 858.0 | 683.9 | |
| 1.02 | -4.00 | 0.58 | -4.00 | -17.13 | 31.27 | 27.26 | 242.67 | 0.4947 | 1054.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -16.90 | 30.03 | 26.02 | 242.18 | 0.4765 | -771.0 | -623.5 | |
| 0.00 | 7.57 | 0.00 | 4.26 | -17.35 | 29.99 | 25.98 | 241.27 | 0.4788 | 86.0 | -95.1 | |
| 0.34 | 1.36 | 0.19 | 0.76 | -16.85 | 29.81 | 25.80 | 242.11 | 0.4733 | -860.5 | -725.0 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -19.33 | 30.14 | 26.13 | 237.70 | 0.4936 | 639.0 | 508.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.16 | 29.41 | 25.40 | 241.17 | 0.4698 | -764.0 | -554.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.23 | 29.18 | 25.17 | 240.85 | 0.4672 | -863.0 | -714.2 | |
| 0.77 | 4.08 | 0.43 | 2.28 | -17.48 | 28.88 | 24.87 | 240.09 | 0.4647 | -792.7 | -643.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -17.28 | 28.68 | 24.67 | 240.32 | 0.4607 | -768.0 | -702.9 | |
| 12.24 | 19.81 | 6.81 | 11.02 | -17.53 | 28.24 | 24.23 | 239.42 | 0.4565 | -975.0 | -670.4 | |
| 2.21 | 15.56 | 1.23 | 8.62 | -17.73 | 27.73 | 23.72 | 238.55 | 0.4510 | -1028.8 | -682.7 | |
| 0.60 | -20.00 | 0.33 | -20.00 | -17.83 | 27.50 | 23.49 | 238.14 | 0.4487 | -871.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
