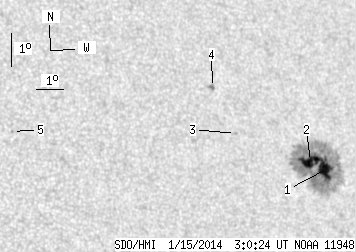

SDO HMI 2014-01-15 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.09 | 187.82 | 23.17 | 127.56 | 5.99 | 45.39 | 41.93 | 283.78 | 0.6866 | -839.9 | -375.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-15 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.68 | 183.31 | 12.08 | 124.70 | 5.86 | 45.78 | 42.32 | 283.45 | 0.6910 | -872.8 | -377.9 | |
| 15.73 | -1.00 | 10.65 | -1.00 | 6.07 | 45.20 | 41.74 | 283.94 | 0.6845 | -986.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 6.76 | 42.34 | 38.88 | 286.00 | 0.6508 | -525.0 | -421.3 | |
| 0.68 | 2.47 | 0.44 | 1.60 | 8.11 | 41.61 | 38.15 | 288.32 | 0.6465 | -751.5 | -589.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.45 | 34.23 | 30.77 | 289.49 | 0.5413 | 672.0 | 460.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
