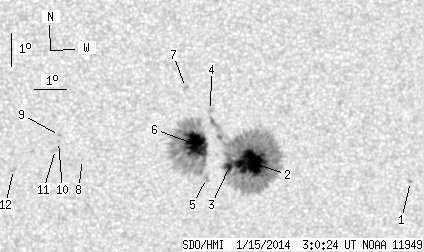

SDO HMI 2014-01-15 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.66 | 446.80 | 44.93 | 229.03 | -16.38 | 12.76 | 9.30 | 216.84 | 0.2592 | 980.2 | 391.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-15 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -17.07 | 18.55 | 15.08 | 228.62 | 0.3330 | -831.0 | -612.6 | |
| 47.36 | 278.11 | 24.34 | 142.92 | -16.57 | 13.49 | 10.03 | 218.58 | 0.2689 | 1305.3 | 416.4 | |
| 4.17 | -2.00 | 2.14 | -2.00 | -16.70 | 12.81 | 9.35 | 216.37 | 0.2636 | 1111.1 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.17 | -15.02 | 12.15 | 8.69 | 218.64 | 0.2347 | 187.0 | 262.3 | |
| 0.00 | 2.64 | 0.00 | 1.35 | -17.07 | 12.11 | 8.65 | 213.47 | 0.2619 | 786.0 | 488.5 | |
| 36.13 | 154.65 | 18.45 | 78.95 | -16.05 | 11.73 | 8.26 | 214.64 | 0.2442 | 1265.5 | 422.2 | |
| 0.00 | 2.38 | 0.00 | 1.21 | -14.34 | 11.36 | 7.89 | 217.94 | 0.2174 | -944.0 | -653.7 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -16.53 | 8.25 | 4.79 | 201.07 | 0.2235 | -745.0 | -601.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -15.81 | 7.53 | 4.06 | 199.25 | 0.2078 | -757.0 | -565.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -15.99 | 7.50 | 4.04 | 198.84 | 0.2105 | -787.0 | -613.1 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -16.23 | 7.41 | 3.95 | 198.09 | 0.2140 | -834.0 | -565.0 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -16.84 | 6.13 | 2.66 | 191.82 | 0.2183 | -711.0 | -684.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
