SDO HMI 2014-01-15 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.04 | 179.36 | 24.48 | 125.36 | 6.03 | 45.44 | 43.61 | 283.29 | 0.7072 | -936.2 | -332.7 | |
|
previous
or next observation for the same group /

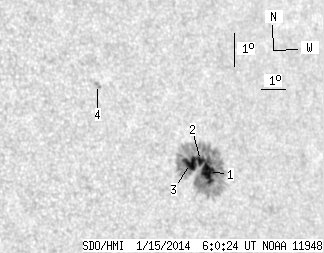

back to the solar disc SDO HMI 2014-01-15 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.03 | 176.55 | 12.65 | 123.50 | 5.88 | 45.79 | 43.96 | 282.98 | 0.7110 | -891.9 | -325.9 | |
| 4.76 | -1.00 | 3.33 | -1.00 | 6.19 | 45.49 | 43.66 | 283.50 | 0.7082 | -880.1 | 999999 | |
| 12.25 | -1.00 | 8.50 | -1.00 | 6.08 | 45.07 | 43.24 | 283.48 | 0.7029 | -1034.3 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.86 | 8.27 | 41.61 | 39.78 | 287.86 | 0.6676 | -849.0 | -692.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
