SDO HMI 2014-01-15 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.93 | 53.04 | 7.85 | 31.25 | 16.55 | 27.04 | 25.21 | 311.15 | 0.5431 | 51.2 | 289.1 | |
|
previous
or next observation for the same group /

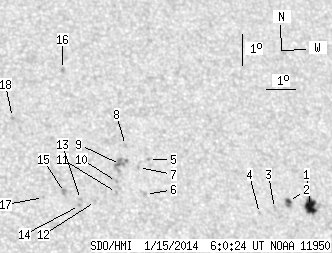

back to the solar disc SDO HMI 2014-01-15 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.57 | 17.43 | 7.03 | 10.59 | 16.02 | 30.89 | 29.06 | 306.23 | 0.5811 | -861.1 | -333.4 | |
| 1.36 | 4.34 | 0.82 | 2.62 | 16.15 | 30.14 | 28.31 | 307.11 | 0.5735 | -827.1 | -786.0 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 15.91 | 29.61 | 27.79 | 307.27 | 0.5655 | -511.0 | -503.8 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 15.73 | 29.07 | 27.24 | 307.54 | 0.5578 | -634.0 | -526.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 17.31 | 25.51 | 23.68 | 313.70 | 0.5325 | 835.0 | 670.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 16.20 | 25.26 | 23.43 | 312.37 | 0.5190 | -763.0 | -586.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 17.05 | 25.14 | 23.31 | 313.76 | 0.5259 | 611.0 | 528.4 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 17.74 | 24.79 | 22.96 | 315.15 | 0.5291 | 625.0 | 481.6 | |
| 0.00 | 10.89 | 0.00 | 6.30 | 17.12 | 24.54 | 22.71 | 314.59 | 0.5203 | 857.0 | 704.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 16.58 | 24.34 | 22.51 | 314.06 | 0.5127 | 667.0 | 565.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 16.23 | 24.29 | 22.47 | 313.60 | 0.5087 | 747.0 | 677.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 15.93 | 23.56 | 21.74 | 314.07 | 0.4977 | 712.0 | 570.5 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 15.98 | 23.07 | 21.25 | 314.79 | 0.4929 | 782.0 | 644.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 15.78 | 23.02 | 21.19 | 314.57 | 0.4903 | 871.0 | 768.9 | |
| 0.00 | 2.81 | 0.00 | 1.59 | 16.18 | 22.57 | 20.74 | 315.77 | 0.4896 | 905.0 | 742.4 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 20.12 | 23.01 | 21.18 | 320.58 | 0.5364 | 713.0 | 583.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.00 | 21.86 | 20.04 | 316.48 | 0.4803 | 734.0 | 670.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 18.52 | 21.13 | 19.30 | 321.07 | 0.5009 | 803.0 | 673.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
