SDO HMI 2014-01-15 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.84 | 422.53 | 42.75 | 218.03 | -16.36 | 12.65 | 11.36 | 222.49 | 0.2810 | 1073.7 | 409.8 | |
|
previous
or next observation for the same group /

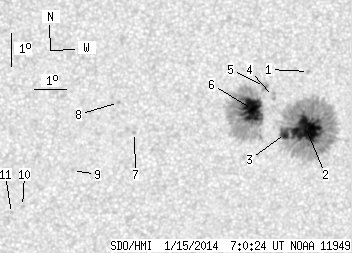

back to the solar disc SDO HMI 2014-01-15 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.82 | 13.38 | 12.09 | 228.44 | 0.2719 | -760.0 | -551.1 | |
| 44.57 | 259.91 | 23.07 | 134.56 | -16.56 | 13.42 | 12.13 | 223.89 | 0.2919 | 1378.7 | 404.6 | |
| 7.06 | -2.00 | 3.65 | -2.00 | -16.69 | 12.76 | 11.48 | 222.04 | 0.2860 | 1129.9 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -15.59 | 12.33 | 11.04 | 223.80 | 0.2678 | 312.0 | 539.4 | |
| 0.00 | 4.76 | 0.00 | 2.44 | -15.29 | 12.03 | 10.75 | 223.85 | 0.2608 | 1000.0 | 761.9 | |
| 31.21 | 147.98 | 16.03 | 75.98 | -15.99 | 11.69 | 10.41 | 221.10 | 0.2654 | 1366.8 | 462.9 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -16.72 | 8.06 | 6.77 | 208.18 | 0.2403 | -873.0 | -719.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -15.82 | 7.53 | 6.25 | 208.20 | 0.2227 | -859.0 | -698.7 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -17.88 | 6.17 | 4.88 | 199.38 | 0.2453 | -718.0 | -595.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -18.98 | 4.63 | 3.35 | 192.53 | 0.2561 | -760.0 | -589.4 | |
| 0.00 | 0.34 | 0.00 | 0.17 | -19.19 | 4.29 | 3.01 | 191.12 | 0.2584 | -694.0 | -590.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
