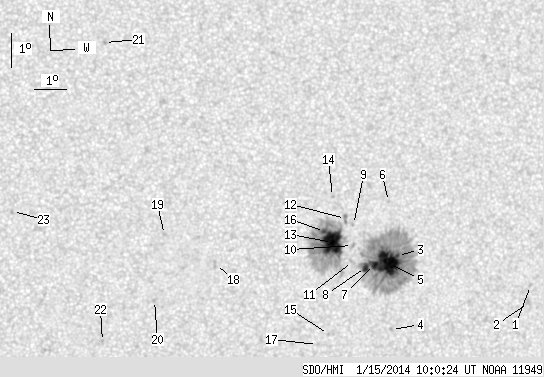

SDO HMI 2014-01-15 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.23 | 435.20 | 42.14 | 225.88 | -16.35 | 12.60 | 12.95 | 226.06 | 0.2995 | 984.5 | 401.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-15 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.14 | 18.06 | 18.41 | 233.75 | 0.3759 | 831.0 | 661.0 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -17.65 | 18.05 | 18.40 | 232.59 | 0.3804 | 798.0 | 632.7 | |
| 1.79 | 257.01 | 0.93 | 133.88 | -16.32 | 13.72 | 14.07 | 228.60 | 0.3125 | 1116.3 | 407.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.56 | 13.70 | 14.06 | 223.36 | 0.3369 | 795.0 | 596.6 | |
| 35.72 | -3.00 | 18.61 | -3.00 | -16.57 | 13.45 | 13.81 | 227.46 | 0.3118 | 1361.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -14.71 | 13.33 | 13.68 | 232.12 | 0.2912 | -717.0 | -570.5 | |
| 5.87 | -3.00 | 3.05 | -3.00 | -16.60 | 13.01 | 13.37 | 226.48 | 0.3069 | 1453.9 | 999999 | |
| 3.83 | -3.00 | 1.99 | -3.00 | -16.70 | 12.73 | 13.09 | 225.67 | 0.3046 | 1178.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -15.41 | 12.27 | 12.63 | 228.00 | 0.2849 | 768.0 | 470.7 | |
| 0.00 | 2.47 | 0.00 | 1.28 | -16.04 | 12.28 | 12.64 | 226.34 | 0.2919 | 841.0 | 654.1 | |
| 0.00 | 2.47 | 0.00 | 1.28 | -16.53 | 12.31 | 12.67 | 225.19 | 0.2977 | 868.0 | 655.1 | |
| 0.00 | 3.40 | 0.00 | 1.75 | -15.24 | 12.01 | 12.37 | 227.90 | 0.2798 | 1135.0 | 895.9 | |
| 32.23 | 148.57 | 16.64 | 76.69 | -15.96 | 11.65 | 12.00 | 225.13 | 0.2834 | 1375.1 | 459.0 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -14.58 | 11.57 | 11.92 | 228.75 | 0.2672 | -649.0 | -573.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -18.75 | 11.70 | 12.06 | 218.76 | 0.3174 | 774.0 | 529.5 | |
| 1.79 | -13.00 | 0.92 | -13.00 | -15.64 | 11.38 | 11.73 | 225.36 | 0.2765 | 1366.2 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -19.06 | 11.38 | 11.73 | 217.38 | 0.3180 | 669.0 | 512.7 | |
| 0.00 | 2.81 | 0.00 | 1.44 | -16.67 | 8.03 | 8.39 | 213.60 | 0.2536 | -681.0 | -611.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.78 | 6.42 | 6.77 | 210.22 | 0.2265 | -897.0 | -709.0 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -17.78 | 6.18 | 6.53 | 205.33 | 0.2543 | -836.0 | -593.4 | |
| 0.00 | 1.53 | 0.00 | 0.76 | -10.07 | 4.47 | 4.82 | 220.76 | 0.1273 | -946.0 | -765.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -19.03 | 4.59 | 4.95 | 198.07 | 0.2640 | -879.0 | -683.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -15.11 | 1.74 | 2.10 | 190.92 | 0.1871 | -941.0 | -715.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
