SDO HMI 2014-01-15 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.74 | 162.15 | 22.51 | 99.10 | -17.35 | 31.14 | 34.24 | 246.43 | 0.5881 | 423.1 | 197.3 | |
|
previous
or next observation for the same group /

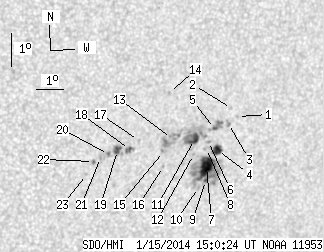

back to the solar disc SDO HMI 2014-01-15 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.58 | -16.22 | 32.61 | 35.71 | 248.92 | 0.6029 | 498.0 | 265.2 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -15.99 | 32.33 | 35.43 | 249.18 | 0.5985 | 623.0 | 487.1 | |
| 0.00 | 2.72 | 0.00 | 1.68 | -16.44 | 32.32 | 35.41 | 248.44 | 0.5999 | 669.0 | 577.8 | |
| 5.87 | 76.42 | 3.62 | 47.16 | -17.27 | 32.08 | 35.17 | 247.00 | 0.5999 | 774.9 | 265.6 | |
| 0.94 | 8.59 | 0.57 | 5.28 | -16.62 | 31.82 | 34.92 | 247.95 | 0.5941 | 969.4 | 769.9 | |
| 0.00 | 1.70 | 0.00 | 1.04 | -17.02 | 31.68 | 34.78 | 247.24 | 0.5938 | 704.0 | 670.8 | |
| 18.53 | -4.00 | 11.43 | -4.00 | -17.77 | 31.77 | 34.87 | 246.06 | 0.5979 | 1003.5 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.41 | -17.23 | 31.65 | 34.75 | 246.88 | 0.5942 | 771.0 | 638.5 | |
| 1.02 | -4.00 | 0.63 | -4.00 | -18.20 | 31.83 | 34.93 | 245.40 | 0.6004 | 611.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -18.42 | 31.61 | 34.71 | 244.95 | 0.5987 | 65.0 | 66.2 | |
| 6.21 | 26.52 | 3.79 | 16.17 | -16.98 | 31.15 | 34.25 | 247.06 | 0.5867 | 1000.7 | 586.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -17.43 | 31.21 | 34.30 | 246.34 | 0.5893 | 860.0 | 718.6 | |
| 0.00 | 16.41 | 0.00 | 9.92 | -16.98 | 30.30 | 33.39 | 246.64 | 0.5756 | -273.0 | -173.7 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -15.61 | 29.96 | 33.06 | 248.82 | 0.5656 | 708.0 | 596.3 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -17.39 | 30.08 | 33.18 | 245.87 | 0.5745 | -359.0 | -197.5 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -17.84 | 30.17 | 33.27 | 245.16 | 0.5777 | -556.0 | -388.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -17.09 | 29.10 | 32.20 | 245.86 | 0.5604 | -537.0 | -435.9 | |
| 0.85 | 4.85 | 0.51 | 2.89 | -17.38 | 28.83 | 31.93 | 245.23 | 0.5580 | -751.7 | -575.4 | |
| 2.98 | 7.31 | 1.76 | 4.34 | -17.42 | 28.40 | 31.50 | 244.91 | 0.5526 | -1080.5 | -753.1 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -17.56 | 28.10 | 31.20 | 244.51 | 0.5493 | -1042.0 | -881.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -17.66 | 27.83 | 30.93 | 244.18 | 0.5463 | -734.0 | -586.7 | |
| 0.34 | 1.19 | 0.20 | 0.70 | -17.79 | 27.60 | 30.70 | 243.81 | 0.5439 | -888.2 | -687.9 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -18.19 | 27.43 | 30.53 | 243.01 | 0.5437 | -759.0 | -579.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
