SDO HMI 2014-01-15 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.73 | 41.35 | 5.00 | 25.87 | 16.15 | 27.37 | 31.57 | 304.49 | 0.6109 | 176.2 | 93.2 | |
|
previous
or next observation for the same group /

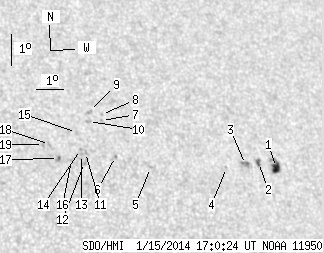

back to the solar disc SDO HMI 2014-01-15 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 10.88 | 3.60 | 7.09 | 15.90 | 31.16 | 35.36 | 301.11 | 0.6524 | -823.4 | -541.1 | |
| 1.70 | 3.48 | 1.10 | 2.25 | 16.02 | 30.51 | 34.71 | 301.73 | 0.6458 | -719.9 | -535.1 | |
| 0.00 | 4.42 | 0.00 | 2.84 | 15.94 | 30.01 | 34.21 | 301.97 | 0.6396 | -860.0 | -769.8 | |
| 0.00 | 0.93 | 0.00 | 0.60 | 15.81 | 29.28 | 33.48 | 302.32 | 0.6304 | -709.0 | -585.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 15.69 | 26.51 | 30.71 | 304.34 | 0.5977 | 494.0 | 446.2 | |
| 0.00 | 1.10 | 0.00 | 0.67 | 15.99 | 25.31 | 29.51 | 305.80 | 0.5861 | -709.0 | -603.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 17.11 | 25.01 | 29.21 | 307.67 | 0.5915 | 679.0 | 547.4 | |
| 0.00 | 1.10 | 0.00 | 0.68 | 17.30 | 25.04 | 29.24 | 307.90 | 0.5934 | 449.0 | 407.4 | |
| 0.00 | 2.21 | 0.00 | 1.35 | 17.38 | 24.63 | 28.83 | 308.39 | 0.5895 | 814.0 | 675.3 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 17.06 | 24.54 | 28.74 | 308.03 | 0.5859 | 781.0 | 666.4 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 16.07 | 24.27 | 28.47 | 306.87 | 0.5749 | 604.0 | 545.3 | |
| 0.00 | 2.80 | 0.00 | 1.69 | 15.75 | 24.19 | 28.39 | 306.49 | 0.5714 | 646.0 | 578.9 | |
| 0.00 | 0.93 | 0.00 | 0.56 | 16.00 | 24.12 | 28.32 | 306.91 | 0.5726 | 495.0 | 521.8 | |
| 0.00 | 0.76 | 0.00 | 0.46 | 16.16 | 24.11 | 28.31 | 307.15 | 0.5738 | 708.0 | 661.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 16.69 | 24.06 | 28.26 | 307.97 | 0.5775 | 668.0 | 433.6 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 15.83 | 23.75 | 27.95 | 307.02 | 0.5669 | 763.0 | 643.2 | |
| 0.51 | 2.55 | 0.30 | 1.52 | 15.84 | 23.30 | 27.50 | 307.47 | 0.5619 | 946.5 | 811.1 | |
| 0.00 | 1.87 | 0.00 | 1.12 | 16.28 | 23.05 | 27.25 | 308.34 | 0.5627 | 757.0 | 573.9 | |
| 0.00 | 1.87 | 0.00 | 1.12 | 16.27 | 22.85 | 27.05 | 308.54 | 0.5603 | 822.0 | 741.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
