SDO HMI 2014-01-15 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.51 | 119.37 | 19.85 | 77.27 | -17.30 | 31.36 | 38.87 | 248.46 | 0.6465 | 364.0 | 236.4 | |
|
previous
or next observation for the same group /

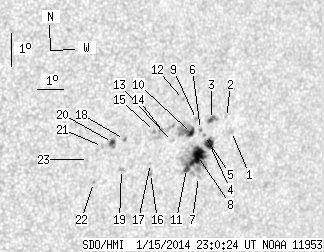

back to the solar disc SDO HMI 2014-01-15 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.24 | -16.78 | 33.03 | 40.54 | 249.79 | 0.6655 | 526.0 | 436.1 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -16.37 | 32.72 | 40.23 | 250.31 | 0.6606 | 509.0 | 357.4 | |
| 1.87 | 4.67 | 1.22 | 3.05 | -16.46 | 32.14 | 39.65 | 249.99 | 0.6536 | 788.5 | 650.6 | |
| 5.78 | 61.79 | 3.79 | 40.33 | -17.19 | 32.24 | 39.75 | 248.94 | 0.6570 | 685.5 | 383.4 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -16.96 | 31.98 | 39.50 | 249.20 | 0.6531 | 664.0 | 494.0 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -16.78 | 31.78 | 39.29 | 249.39 | 0.6501 | 736.0 | 651.0 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -18.20 | 32.07 | 39.58 | 247.38 | 0.6580 | -145.0 | -128.2 | |
| 15.38 | -4.00 | 10.04 | -4.00 | -17.57 | 31.86 | 39.37 | 248.24 | 0.6535 | 900.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -16.49 | 31.55 | 39.06 | 249.76 | 0.6464 | 845.0 | 691.0 | |
| 2.89 | 17.59 | 1.87 | 11.35 | -16.92 | 31.46 | 38.97 | 249.08 | 0.6465 | 886.7 | 648.0 | |
| 2.55 | -4.00 | 1.66 | -4.00 | -17.98 | 31.53 | 39.04 | 247.51 | 0.6507 | 696.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -15.92 | 30.90 | 38.42 | 250.42 | 0.6365 | 780.0 | 606.8 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -17.20 | 30.77 | 38.28 | 248.42 | 0.6388 | 607.0 | 416.8 | |
| 0.00 | 9.69 | 0.00 | 6.18 | -16.91 | 30.35 | 37.86 | 248.70 | 0.6326 | -68.0 | -186.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -16.93 | 30.00 | 37.51 | 248.54 | 0.6283 | -812.0 | -722.4 | |
| 0.00 | 2.21 | 0.00 | 1.41 | -18.20 | 30.15 | 37.67 | 246.65 | 0.6346 | -853.0 | -602.6 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -17.90 | 30.08 | 37.59 | 247.08 | 0.6326 | -549.0 | -418.0 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -17.22 | 28.91 | 36.42 | 247.66 | 0.6154 | -537.0 | -576.9 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -18.13 | 29.01 | 36.52 | 246.28 | 0.6200 | -696.0 | -577.1 | |
| 2.04 | 4.93 | 1.27 | 3.08 | -17.33 | 28.47 | 35.99 | 247.30 | 0.6103 | -903.8 | -672.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -17.47 | 28.12 | 35.63 | 246.94 | 0.6063 | -717.0 | -561.1 | |
| 0.00 | 0.93 | 0.00 | 0.58 | -18.57 | 28.03 | 35.55 | 245.16 | 0.6096 | -654.0 | -581.4 | |
| 0.00 | 0.42 | 0.00 | 0.26 | -17.89 | 27.68 | 35.20 | 246.08 | 0.6023 | -492.0 | -566.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
