SDO HMI 2014-01-16 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.89 | 109.38 | 20.99 | 71.69 | -17.25 | 31.18 | 39.79 | 248.86 | 0.6576 | 350.2 | 253.8 | |
|
previous
or next observation for the same group /

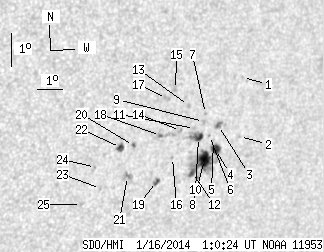

back to the solar disc SDO HMI 2014-01-16 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.51 | -14.99 | 32.80 | 41.41 | 252.68 | 0.6716 | 554.0 | 476.1 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -16.76 | 33.12 | 41.73 | 250.19 | 0.6798 | 483.0 | 411.5 | |
| 1.45 | 3.91 | 0.96 | 2.59 | -16.48 | 32.19 | 40.80 | 250.34 | 0.6677 | 745.1 | 614.3 | |
| 6.21 | 53.90 | 4.13 | 35.74 | -17.20 | 32.25 | 40.86 | 249.29 | 0.6705 | 627.1 | 401.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -16.94 | 32.10 | 40.71 | 249.63 | 0.6679 | 604.0 | 440.1 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -16.80 | 31.90 | 40.51 | 249.78 | 0.6651 | 703.0 | 597.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -16.14 | 31.58 | 40.19 | 250.65 | 0.6593 | 644.0 | 597.5 | |
| 11.73 | -4.00 | 7.78 | -4.00 | -17.53 | 31.89 | 40.50 | 248.71 | 0.6671 | 917.5 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.23 | -16.39 | 31.56 | 40.17 | 250.28 | 0.6597 | 422.0 | 479.7 | |
| 3.91 | 11.14 | 2.57 | 7.31 | -16.88 | 31.48 | 40.09 | 249.53 | 0.6601 | 868.4 | 715.4 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -16.62 | 31.25 | 39.86 | 249.85 | 0.6566 | 635.0 | 472.9 | |
| 2.72 | -4.00 | 1.80 | -4.00 | -17.94 | 31.51 | 40.12 | 247.97 | 0.6638 | 690.8 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -15.94 | 30.85 | 39.46 | 250.74 | 0.6496 | 711.0 | 590.2 | |
| 0.00 | 1.96 | 0.00 | 1.27 | -16.70 | 30.71 | 39.32 | 249.54 | 0.6501 | -444.0 | -355.6 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -15.49 | 30.23 | 38.84 | 251.24 | 0.6406 | 718.0 | 612.7 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -17.53 | 30.60 | 39.21 | 248.26 | 0.6513 | 616.0 | 493.6 | |
| 0.00 | 3.32 | 0.00 | 2.13 | -15.77 | 29.94 | 38.55 | 250.71 | 0.6377 | 747.0 | 666.1 | |
| 0.51 | 5.36 | 0.33 | 3.46 | -16.89 | 29.96 | 38.57 | 249.00 | 0.6414 | -781.3 | -437.2 | |
| 1.70 | 3.40 | 1.10 | 2.21 | -18.28 | 30.16 | 38.77 | 246.97 | 0.6483 | -714.2 | -576.3 | |
| 0.77 | 2.04 | 0.49 | 1.30 | -17.24 | 28.99 | 37.60 | 248.11 | 0.6303 | -583.3 | -379.7 | |
| 0.00 | 4.68 | 0.00 | 2.99 | -18.18 | 28.98 | 37.59 | 246.66 | 0.6335 | -714.0 | -546.6 | |
| 2.89 | 4.34 | 1.83 | 2.74 | -17.32 | 28.50 | 37.11 | 247.79 | 0.6244 | -792.6 | -614.9 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -18.59 | 28.03 | 36.64 | 245.63 | 0.6233 | -601.0 | -460.3 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -17.97 | 27.68 | 36.29 | 246.45 | 0.6165 | -676.0 | -585.7 | |
| 0.00 | 1.79 | 0.00 | 1.12 | -19.11 | 27.42 | 36.03 | 244.56 | 0.6178 | -521.0 | -290.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
