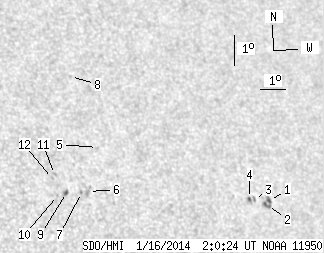

SDO HMI 2014-01-16 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 23.39 | 2.81 | 15.56 | 16.07 | 27.57 | 36.73 | 300.67 | 0.6690 | 293.4 | 99.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 6.97 | 0.77 | 4.88 | 15.93 | 31.37 | 40.53 | 298.04 | 0.7103 | -592.1 | -530.9 | |
| 1.53 | -1.00 | 1.07 | -1.00 | 15.77 | 31.25 | 40.41 | 297.90 | 0.7082 | -707.9 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.42 | 15.93 | 30.76 | 39.92 | 298.38 | 0.7038 | -496.0 | -455.4 | |
| 0.85 | 2.38 | 0.59 | 1.65 | 15.95 | 30.57 | 39.73 | 298.52 | 0.7017 | -760.7 | -663.3 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 17.28 | 25.00 | 34.16 | 303.89 | 0.6482 | 611.0 | 497.5 | |
| 0.00 | 3.91 | 0.00 | 2.49 | 15.86 | 24.38 | 33.54 | 302.42 | 0.6319 | 629.0 | 563.1 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 15.82 | 24.11 | 33.27 | 302.55 | 0.6285 | 809.0 | 610.0 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 19.52 | 24.50 | 33.65 | 307.22 | 0.6582 | 529.0 | 440.1 | |
| 0.60 | 1.96 | 0.38 | 1.23 | 15.79 | 23.56 | 32.72 | 302.94 | 0.6220 | 804.4 | 694.4 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 15.68 | 23.21 | 32.37 | 303.05 | 0.6173 | 671.0 | 594.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 16.35 | 23.22 | 32.38 | 303.97 | 0.6220 | 511.0 | 532.9 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 16.22 | 23.13 | 32.29 | 303.86 | 0.6200 | 753.0 | 718.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
