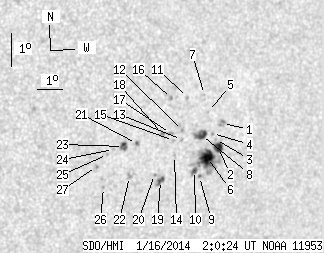

SDO HMI 2014-01-16 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.85 | 102.59 | 22.44 | 67.81 | -17.31 | 31.21 | 40.37 | 248.97 | 0.6647 | 276.6 | 179.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.42 | 0.00 | 2.96 | -16.45 | 32.25 | 41.41 | 250.55 | 0.6751 | 742.0 | 633.3 | |
| 6.38 | 52.03 | 4.28 | 34.81 | -17.18 | 32.28 | 41.44 | 249.51 | 0.6774 | 615.7 | 341.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -16.95 | 32.09 | 41.25 | 249.79 | 0.6745 | 668.0 | 552.9 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -16.77 | 31.93 | 41.08 | 249.99 | 0.6720 | 596.0 | 565.5 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -16.12 | 31.60 | 40.75 | 250.85 | 0.6662 | 617.0 | 600.3 | |
| 12.41 | -2.00 | 8.30 | -2.00 | -17.50 | 31.92 | 41.07 | 248.93 | 0.6739 | 891.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -15.62 | 31.31 | 40.47 | 251.51 | 0.6614 | 637.0 | 567.4 | |
| 6.29 | 9.95 | 4.17 | 6.59 | -16.86 | 31.50 | 40.66 | 249.74 | 0.6670 | 869.6 | 674.3 | |
| 0.43 | 1.45 | 0.28 | 0.97 | -18.09 | 31.75 | 40.91 | 248.02 | 0.6736 | 462.2 | 302.2 | |
| 1.96 | -2.00 | 1.30 | -2.00 | -17.92 | 31.50 | 40.66 | 248.18 | 0.6701 | 689.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -15.75 | 30.66 | 39.82 | 251.14 | 0.6536 | 552.0 | 431.8 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -16.74 | 30.70 | 39.86 | 249.66 | 0.6569 | -465.0 | -236.9 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -17.02 | 30.73 | 39.89 | 249.26 | 0.6580 | 518.0 | 497.3 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -17.51 | 30.57 | 39.73 | 248.48 | 0.6576 | 668.0 | 567.1 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -17.06 | 30.42 | 39.58 | 249.09 | 0.6543 | 478.0 | 399.6 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -15.81 | 30.04 | 39.19 | 250.86 | 0.6460 | 747.0 | 701.1 | |
| 0.00 | 1.87 | 0.00 | 1.22 | -16.86 | 30.25 | 39.41 | 249.34 | 0.6516 | -538.0 | -476.6 | |
| 0.00 | 2.21 | 0.00 | 1.43 | -16.87 | 29.93 | 39.09 | 249.21 | 0.6477 | -787.0 | -598.2 | |
| 2.72 | 4.93 | 1.78 | 3.23 | -18.29 | 30.22 | 39.38 | 247.20 | 0.6558 | -663.4 | -540.1 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -18.12 | 29.93 | 39.09 | 247.34 | 0.6517 | -565.0 | -583.5 | |
| 0.51 | 1.79 | 0.33 | 1.14 | -17.22 | 28.99 | 38.15 | 248.35 | 0.6371 | -526.5 | -480.3 | |
| 0.00 | 2.64 | 0.00 | 1.69 | -18.23 | 28.96 | 38.12 | 246.81 | 0.6402 | -645.0 | -591.5 | |
| 3.15 | 4.93 | 2.00 | 3.14 | -17.34 | 28.51 | 37.66 | 248.00 | 0.6314 | -780.3 | -575.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -17.44 | 28.14 | 37.30 | 247.69 | 0.6272 | -693.0 | -588.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -17.61 | 27.95 | 37.10 | 247.36 | 0.6253 | -788.0 | -636.8 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -18.61 | 28.04 | 37.20 | 245.86 | 0.6302 | -656.0 | -469.1 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -17.99 | 27.61 | 36.77 | 246.63 | 0.6225 | -780.0 | -668.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
