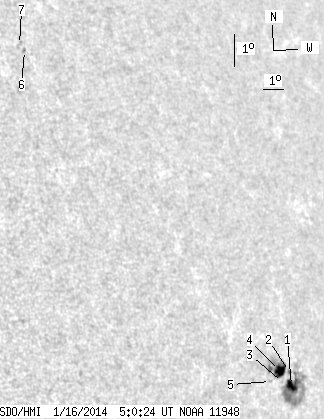

SDO HMI 2014-01-16 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.71 | 87.19 | 17.04 | 78.95 | 6.42 | 44.94 | 55.74 | 280.89 | 0.8385 | -614.1 | -309.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.23 | 51.88 | 6.63 | 47.75 | 5.84 | 45.63 | 56.43 | 280.01 | 0.8438 | -776.2 | -313.4 | |
| 0.85 | 1.87 | 0.78 | 1.72 | 6.26 | 45.59 | 56.39 | 280.50 | 0.8441 | -335.3 | -310.4 | |
| 0.00 | 1.02 | 0.00 | 0.93 | 5.90 | 45.16 | 55.95 | 280.17 | 0.8395 | -612.0 | -490.1 | |
| 10.63 | 26.37 | 9.63 | 23.78 | 6.25 | 45.05 | 55.85 | 280.60 | 0.8391 | -764.5 | -457.4 | |
| 0.00 | 1.28 | 0.00 | 1.14 | 5.89 | 44.52 | 55.31 | 280.28 | 0.8335 | -614.0 | -506.2 | |
| 0.00 | 1.62 | 0.00 | 1.23 | 15.37 | 34.98 | 45.78 | 294.78 | 0.7634 | 464.0 | 380.4 | |
| 0.00 | 3.15 | 0.00 | 2.40 | 15.55 | 34.82 | 45.61 | 295.07 | 0.7624 | 611.0 | 440.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
