SDO HMI 2014-01-16 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 23.30 | 1.23 | 15.80 | 16.49 | 26.98 | 37.78 | 300.58 | 0.6833 | 29.7 | 11.1 | |
|
previous
or next observation for the same group /

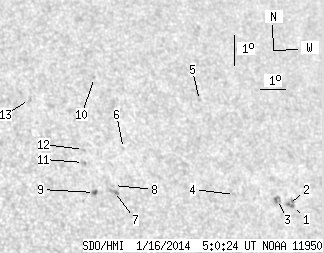

back to the solar disc SDO HMI 2014-01-16 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 4.93 | 0.37 | 3.55 | 15.76 | 31.37 | 42.17 | 296.97 | 0.7273 | -656.8 | -569.5 | |
| 0.43 | -1.00 | 0.31 | -1.00 | 15.78 | 31.21 | 42.01 | 297.08 | 0.7257 | -771.6 | 999999 | |
| 0.00 | 3.40 | 0.00 | 2.43 | 15.91 | 30.79 | 41.59 | 297.47 | 0.7218 | -697.0 | -608.3 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 15.98 | 29.06 | 39.86 | 298.49 | 0.7034 | -580.0 | -527.2 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 18.92 | 28.43 | 39.23 | 302.62 | 0.7126 | -553.0 | -397.0 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 17.22 | 25.02 | 35.81 | 302.65 | 0.6661 | 436.0 | 426.7 | |
| 0.00 | 3.40 | 0.00 | 2.21 | 15.83 | 24.38 | 35.17 | 301.22 | 0.6504 | 728.0 | 611.4 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 16.02 | 24.38 | 35.17 | 301.48 | 0.6516 | 650.0 | 532.8 | |
| 0.85 | 2.38 | 0.55 | 1.53 | 15.77 | 23.62 | 34.41 | 301.66 | 0.6413 | 796.4 | 689.7 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 19.46 | 24.44 | 35.24 | 305.96 | 0.6745 | 601.0 | 476.0 | |
| 0.00 | 2.21 | 0.00 | 1.43 | 16.70 | 23.39 | 34.19 | 303.10 | 0.6448 | 282.0 | 352.7 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 17.11 | 23.48 | 34.28 | 303.60 | 0.6486 | 491.0 | 466.7 | |
| 0.00 | 1.87 | 0.00 | 1.20 | 18.63 | 21.80 | 32.59 | 306.91 | 0.6407 | 508.0 | 499.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
