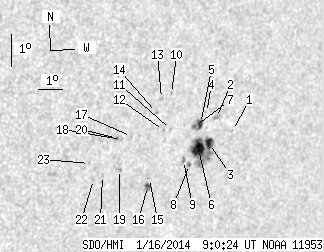

SDO HMI 2014-01-16 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.25 | 77.44 | 17.21 | 54.61 | -17.34 | 31.55 | 44.53 | 250.14 | 0.7140 | 318.7 | 165.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.43 | -16.82 | 33.30 | 46.28 | 251.27 | 0.7328 | 444.0 | 402.1 | |
| 0.00 | 2.98 | 0.00 | 2.13 | -16.47 | 32.49 | 45.46 | 251.57 | 0.7228 | 697.0 | 570.3 | |
| 5.78 | 44.83 | 4.14 | 31.95 | -17.27 | 32.42 | 45.40 | 250.47 | 0.7238 | 539.3 | 234.9 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -16.35 | 32.01 | 44.99 | 251.64 | 0.7171 | 530.0 | 486.0 | |
| 3.57 | 8.34 | 2.53 | 5.89 | -16.69 | 31.85 | 44.83 | 251.13 | 0.7160 | 823.8 | 715.2 | |
| 12.08 | -3.00 | 8.58 | -3.00 | -17.45 | 31.99 | 44.97 | 250.12 | 0.7193 | 966.4 | 999999 | |
| 0.77 | -5.00 | 0.54 | -5.00 | -16.80 | 31.62 | 44.60 | 250.93 | 0.7136 | 835.8 | 999999 | |
| 0.60 | 1.79 | 0.42 | 1.27 | -17.95 | 31.76 | 44.73 | 249.38 | 0.7178 | 569.0 | 484.4 | |
| 0.00 | 2.55 | 0.00 | 1.80 | -17.84 | 31.46 | 44.44 | 249.45 | 0.7141 | 618.0 | 597.7 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -15.86 | 30.37 | 43.35 | 251.94 | 0.6969 | 654.0 | 523.0 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -16.94 | 30.63 | 43.60 | 250.48 | 0.7024 | 485.0 | 376.8 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -16.99 | 30.34 | 43.32 | 250.34 | 0.6991 | -252.0 | -228.4 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -16.03 | 29.99 | 42.97 | 251.60 | 0.6928 | 710.0 | 660.8 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -16.46 | 29.90 | 42.88 | 250.96 | 0.6926 | -487.0 | -417.3 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -18.46 | 30.19 | 43.16 | 248.23 | 0.7011 | -617.0 | -568.1 | |
| 1.45 | 3.32 | 1.00 | 2.30 | -18.71 | 30.18 | 43.16 | 247.89 | 0.7017 | -764.6 | -665.9 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -17.24 | 29.07 | 42.04 | 249.63 | 0.6846 | -619.0 | -516.1 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -17.35 | 28.68 | 41.66 | 249.36 | 0.6803 | -636.0 | -583.0 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -18.25 | 28.86 | 41.83 | 248.11 | 0.6850 | -681.0 | -637.6 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -17.33 | 28.51 | 41.49 | 249.34 | 0.6782 | -943.0 | -837.2 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -18.47 | 28.21 | 41.19 | 247.59 | 0.6780 | -577.0 | -496.2 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -18.61 | 27.88 | 40.86 | 247.28 | 0.6745 | -627.0 | -444.4 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -18.14 | 27.58 | 40.56 | 247.87 | 0.6694 | -583.0 | -483.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
