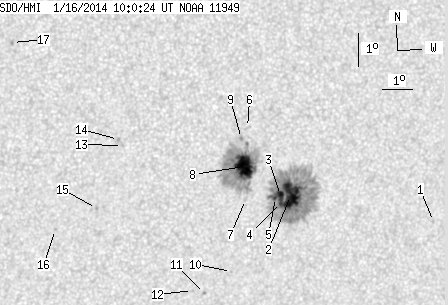

SDO HMI 2014-01-16 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.98 | 358.61 | 34.12 | 200.89 | -16.26 | 12.21 | 25.74 | 243.43 | 0.4679 | 909.6 | 401.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.56 | -17.14 | 18.16 | 31.68 | 245.63 | 0.5531 | 646.0 | 529.0 | |
| 25.94 | 215.45 | 14.63 | 121.62 | -16.55 | 13.01 | 26.53 | 243.46 | 0.4806 | 1171.0 | 364.3 | |
| 4.93 | -2.00 | 2.77 | -2.00 | -16.56 | 12.66 | 26.19 | 243.18 | 0.4759 | 1340.6 | 999999 | |
| 1.45 | -2.00 | 0.81 | -2.00 | -16.77 | 12.70 | 26.22 | 242.79 | 0.4776 | 1043.8 | 999999 | |
| 1.02 | -2.00 | 0.57 | -2.00 | -16.62 | 12.50 | 26.02 | 242.93 | 0.4741 | 1208.8 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.32 | -14.56 | 11.28 | 24.80 | 246.23 | 0.4455 | -346.0 | -291.9 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -16.72 | 11.49 | 25.01 | 241.94 | 0.4608 | 309.0 | 337.4 | |
| 27.64 | 127.16 | 15.34 | 70.48 | -15.73 | 11.32 | 24.85 | 243.82 | 0.4526 | 1329.0 | 543.1 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -14.89 | 11.12 | 24.64 | 245.40 | 0.4450 | 994.0 | 835.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -18.91 | 11.34 | 24.86 | 237.55 | 0.4733 | 634.0 | 516.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.61 | 10.52 | 24.04 | 235.45 | 0.4679 | 706.0 | 534.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.53 | 10.10 | 23.62 | 235.18 | 0.4619 | 524.0 | 479.8 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -15.22 | 7.21 | 20.73 | 241.18 | 0.3916 | -770.0 | -591.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.04 | 7.06 | 20.59 | 241.43 | 0.3883 | -886.0 | -743.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -17.13 | 6.57 | 20.09 | 236.12 | 0.3970 | -934.0 | -685.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -17.80 | 5.29 | 18.82 | 233.03 | 0.3860 | -789.0 | -546.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -12.23 | 3.44 | 16.96 | 244.68 | 0.3167 | -903.0 | -765.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
