SDO HMI 2014-01-16 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.19 | 371.18 | 33.26 | 208.72 | -16.21 | 12.16 | 26.23 | 243.88 | 0.4745 | 806.8 | 404.2 | |
|
previous
or next observation for the same group /

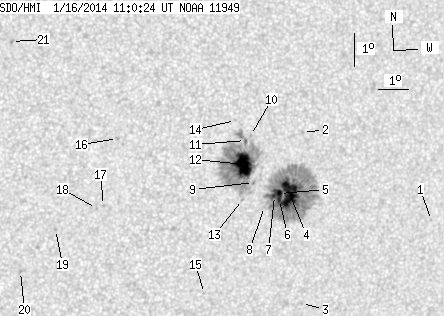

back to the solar disc SDO HMI 2014-01-16 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.61 | -17.15 | 18.16 | 32.23 | 245.91 | 0.5604 | 678.0 | 513.0 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -14.68 | 13.19 | 27.26 | 247.62 | 0.4812 | -642.0 | -538.7 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -19.84 | 14.00 | 28.06 | 238.56 | 0.5208 | 650.0 | 480.1 | |
| 25.77 | 208.03 | 14.60 | 117.98 | -16.53 | 13.01 | 27.08 | 243.89 | 0.4880 | 1165.6 | 378.6 | |
| 3.06 | -4.00 | 1.73 | -4.00 | -16.54 | 12.67 | 26.73 | 243.63 | 0.4833 | 1367.2 | 999999 | |
| 1.19 | -4.00 | 0.67 | -4.00 | -16.72 | 12.69 | 26.76 | 243.30 | 0.4847 | 1101.9 | 999999 | |
| 1.36 | -4.00 | 0.77 | -4.00 | -16.60 | 12.50 | 26.57 | 243.38 | 0.4815 | 1223.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -16.95 | 12.21 | 26.28 | 242.49 | 0.4795 | 261.0 | 197.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.24 | 11.73 | 25.80 | 243.52 | 0.4688 | 559.0 | 493.6 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -14.83 | 11.44 | 25.51 | 246.16 | 0.4571 | 657.0 | 491.6 | |
| 0.51 | 147.05 | 0.28 | 81.84 | -14.99 | 11.29 | 25.36 | 245.73 | 0.4558 | 901.3 | 515.8 | |
| 27.30 | -11.00 | 15.21 | -11.00 | -15.71 | 11.32 | 25.39 | 244.27 | 0.4600 | 1294.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -16.76 | 11.43 | 25.50 | 242.25 | 0.4677 | 521.0 | 396.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -14.40 | 10.88 | 24.95 | 246.67 | 0.4469 | -549.0 | -393.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -19.65 | 10.57 | 24.63 | 235.95 | 0.4758 | 723.0 | 612.6 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -15.06 | 7.04 | 21.11 | 241.94 | 0.3958 | -849.0 | -710.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -17.08 | 6.80 | 20.87 | 237.16 | 0.4071 | -670.0 | -566.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.18 | 6.58 | 20.65 | 236.69 | 0.4049 | -843.0 | -697.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.85 | 5.31 | 19.38 | 233.68 | 0.3937 | -796.0 | -588.2 | |
| 0.00 | 2.04 | 0.00 | 1.10 | -19.15 | 4.31 | 18.38 | 229.56 | 0.3930 | -949.0 | -669.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -12.25 | 3.40 | 17.46 | 245.22 | 0.3245 | -918.0 | -796.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
