SDO HMI 2014-01-16 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.77 | 80.72 | 15.74 | 57.84 | -17.46 | 31.36 | 45.43 | 250.20 | 0.7245 | 390.6 | 109.0 | |
|
previous
or next observation for the same group /

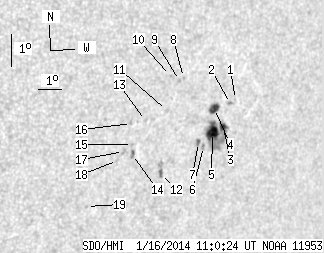

back to the solar disc SDO HMI 2014-01-16 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.37 | -16.40 | 32.71 | 46.78 | 251.95 | 0.7376 | 457.0 | 415.2 | |
| 0.00 | 1.96 | 0.00 | 1.42 | -16.53 | 32.52 | 46.59 | 251.74 | 0.7358 | 736.0 | 567.4 | |
| 3.40 | 43.12 | 2.48 | 31.33 | -17.27 | 32.44 | 46.51 | 250.73 | 0.7363 | 570.6 | 252.9 | |
| 5.78 | 8.16 | 4.17 | 5.88 | -16.72 | 31.87 | 45.94 | 251.34 | 0.7287 | 819.7 | 605.9 | |
| 10.04 | -3.00 | 7.27 | -3.00 | -17.44 | 32.01 | 46.08 | 250.40 | 0.7318 | 950.2 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.78 | -17.88 | 31.75 | 45.82 | 249.74 | 0.7299 | 611.0 | 488.9 | |
| 1.19 | 2.81 | 0.86 | 2.02 | -17.78 | 31.49 | 45.56 | 249.82 | 0.7267 | 685.8 | 572.4 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -15.87 | 30.26 | 44.33 | 252.16 | 0.7085 | 327.0 | 407.5 | |
| 0.00 | 1.53 | 0.00 | 1.07 | -15.97 | 30.12 | 44.19 | 251.99 | 0.7070 | 711.0 | 649.3 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -15.84 | 29.70 | 43.77 | 252.07 | 0.7018 | 664.0 | 555.6 | |
| 0.00 | 2.04 | 0.00 | 1.42 | -16.89 | 29.82 | 43.89 | 250.62 | 0.7056 | -683.0 | -454.2 | |
| 1.36 | 6.55 | 0.96 | 4.61 | -18.80 | 30.16 | 44.23 | 248.07 | 0.7141 | -758.8 | -592.4 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -17.24 | 29.03 | 43.10 | 249.92 | 0.6971 | -137.0 | -241.8 | |
| 0.00 | 3.06 | 0.00 | 2.11 | -18.29 | 28.79 | 42.86 | 248.38 | 0.6971 | -713.0 | -593.4 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -17.99 | 28.70 | 42.77 | 248.77 | 0.6952 | -564.0 | -506.6 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -17.36 | 28.47 | 42.54 | 249.60 | 0.6908 | -778.0 | -687.0 | |
| 0.00 | 2.13 | 0.00 | 1.45 | -18.22 | 28.39 | 42.45 | 248.36 | 0.6922 | -577.0 | -574.1 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -18.50 | 28.22 | 42.29 | 247.90 | 0.6910 | -582.0 | -481.4 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -19.96 | 27.37 | 41.44 | 245.56 | 0.6856 | 542.0 | 480.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
