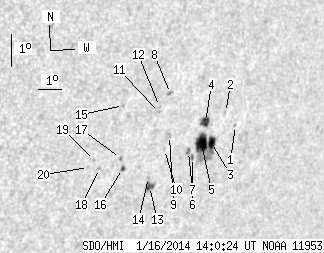

SDO HMI 2014-01-16 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.79 | 75.53 | 23.63 | 55.78 | -17.45 | 31.43 | 47.14 | 250.61 | 0.7435 | 322.3 | 71.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.91 | -16.78 | 33.40 | 49.11 | 251.91 | 0.7638 | 438.0 | 307.9 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -16.42 | 32.80 | 48.52 | 252.27 | 0.7568 | 514.0 | 477.0 | |
| 6.12 | 41.32 | 4.60 | 30.95 | -17.35 | 32.47 | 48.18 | 250.98 | 0.7548 | 400.8 | 53.8 | |
| 5.44 | 7.91 | 4.05 | 5.88 | -16.74 | 31.98 | 47.70 | 251.69 | 0.7484 | 798.8 | 584.0 | |
| 14.79 | -3.00 | 11.04 | -3.00 | -17.41 | 32.03 | 47.74 | 250.81 | 0.7501 | 868.8 | 999999 | |
| 0.85 | 1.96 | 0.63 | 1.45 | -17.85 | 31.76 | 47.48 | 250.17 | 0.7481 | 564.8 | 470.5 | |
| 0.00 | 2.47 | 0.00 | 1.82 | -17.68 | 31.52 | 47.24 | 250.35 | 0.7451 | 739.0 | 644.9 | |
| 0.00 | 1.87 | 0.00 | 1.34 | -15.99 | 30.17 | 45.89 | 252.33 | 0.7267 | 765.0 | 673.0 | |
| 0.00 | 2.13 | 0.00 | 1.54 | -17.25 | 30.52 | 46.23 | 250.70 | 0.7331 | 626.0 | 533.7 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -17.68 | 30.43 | 46.15 | 250.10 | 0.7331 | 522.0 | 453.6 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -16.58 | 29.86 | 45.58 | 251.45 | 0.7244 | -598.0 | -492.5 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -16.41 | 29.81 | 45.52 | 251.68 | 0.7234 | -162.0 | -237.9 | |
| 3.40 | 5.10 | 2.47 | 3.70 | -18.83 | 30.15 | 45.87 | 248.48 | 0.7326 | -700.8 | -526.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -18.56 | 30.02 | 45.73 | 248.81 | 0.7304 | -570.0 | -477.4 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -16.46 | 28.26 | 43.98 | 251.25 | 0.7056 | -386.0 | -358.5 | |
| 1.19 | 2.38 | 0.84 | 1.68 | -18.35 | 28.80 | 44.51 | 248.77 | 0.7162 | -580.4 | -427.1 | |
| 0.00 | 1.53 | 0.00 | 1.08 | -18.06 | 28.61 | 44.33 | 249.13 | 0.7134 | -506.0 | -485.6 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -18.40 | 27.81 | 43.53 | 248.42 | 0.7051 | -784.0 | -616.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -18.18 | 27.53 | 43.24 | 248.66 | 0.7012 | -600.0 | -418.3 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -18.40 | 27.34 | 43.06 | 248.29 | 0.6996 | -678.0 | -611.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
