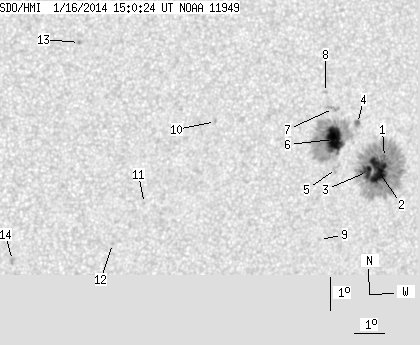

SDO HMI 2014-01-16 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.48 | 343.16 | 40.39 | 196.54 | -16.21 | 12.06 | 28.32 | 245.29 | 0.5034 | 884.3 | 354.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 202.51 | 0.49 | 117.07 | -16.14 | 13.09 | 29.36 | 246.10 | 0.5172 | 854.8 | 319.0 | |
| 30.78 | -1.00 | 17.78 | -1.00 | -16.54 | 12.94 | 29.21 | 245.28 | 0.5171 | 1095.1 | 999999 | |
| 9.18 | -1.00 | 5.29 | -1.00 | -16.58 | 12.56 | 28.83 | 244.96 | 0.5122 | 1246.9 | 999999 | |
| 0.00 | 3.66 | 0.00 | 2.08 | -15.16 | 12.00 | 28.26 | 247.30 | 0.4974 | 21.0 | 6.9 | |
| 0.00 | 4.51 | 0.00 | 2.57 | -16.53 | 11.47 | 27.74 | 244.35 | 0.4970 | 560.0 | 496.1 | |
| 29.67 | 117.75 | 16.83 | 66.71 | -15.67 | 11.24 | 27.50 | 245.85 | 0.4893 | 1233.1 | 500.7 | |
| 0.00 | 4.59 | 0.00 | 2.59 | -14.74 | 11.11 | 27.37 | 247.59 | 0.4830 | 946.0 | 820.2 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -14.27 | 10.77 | 27.04 | 248.32 | 0.4761 | -666.0 | -545.0 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -18.70 | 11.24 | 27.50 | 240.17 | 0.5063 | 706.0 | 515.6 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -15.26 | 7.18 | 23.45 | 243.67 | 0.4301 | -799.0 | -642.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.79 | 5.12 | 21.39 | 236.24 | 0.4195 | -838.0 | -718.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.04 | 4.22 | 20.48 | 232.62 | 0.4181 | -756.0 | -637.0 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -13.02 | 2.53 | 18.79 | 244.57 | 0.3491 | -969.0 | -773.7 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -19.63 | 0.98 | 17.25 | 226.90 | 0.3842 | -855.0 | -688.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
