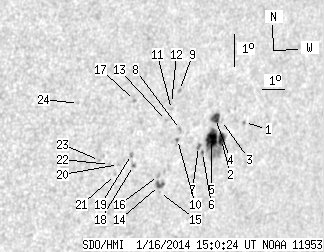

SDO HMI 2014-01-16 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.62 | 80.03 | 23.02 | 59.58 | -17.49 | 31.31 | 47.57 | 250.65 | 0.7483 | 221.5 | -13.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.85 | -16.81 | 33.38 | 49.64 | 251.96 | 0.7695 | 421.0 | 296.6 | |
| 5.78 | 40.89 | 4.40 | 30.96 | -17.38 | 32.49 | 48.76 | 251.06 | 0.7610 | 380.0 | 61.8 | |
| 0.00 | 1.87 | 0.00 | 1.41 | -16.81 | 32.29 | 48.56 | 251.76 | 0.7579 | 186.0 | 193.7 | |
| 5.10 | 6.97 | 3.84 | 5.24 | -16.77 | 32.00 | 48.26 | 251.76 | 0.7546 | 785.0 | 577.5 | |
| 14.45 | -2.00 | 10.90 | -2.00 | -17.41 | 32.03 | 48.30 | 250.93 | 0.7561 | 862.1 | 999999 | |
| 0.68 | 1.87 | 0.51 | 1.40 | -17.82 | 31.76 | 48.02 | 250.33 | 0.7540 | 478.9 | 426.0 | |
| 1.11 | 2.47 | 0.83 | 1.84 | -17.65 | 31.51 | 47.78 | 250.50 | 0.7510 | 710.8 | 608.9 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -17.19 | 30.53 | 46.80 | 250.91 | 0.7393 | 781.0 | 656.8 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -16.03 | 30.12 | 46.39 | 252.38 | 0.7325 | 745.0 | 643.5 | |
| 0.43 | 1.79 | 0.31 | 1.31 | -17.49 | 30.50 | 46.76 | 250.49 | 0.7395 | 654.4 | 532.6 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -16.61 | 29.94 | 46.21 | 251.55 | 0.7316 | -495.0 | -412.0 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -16.43 | 29.89 | 46.15 | 251.78 | 0.7306 | -356.0 | -181.9 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -16.95 | 29.83 | 46.09 | 251.07 | 0.7309 | -624.0 | -512.9 | |
| 2.64 | 4.93 | 1.93 | 3.61 | -18.92 | 30.18 | 46.44 | 248.51 | 0.7391 | -682.7 | -492.2 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -19.13 | 30.26 | 46.52 | 248.25 | 0.7404 | -488.0 | -453.5 | |
| 0.00 | 1.70 | 0.00 | 1.24 | -18.62 | 30.03 | 46.29 | 248.87 | 0.7368 | -518.0 | -425.0 | |
| 0.00 | 1.19 | 0.00 | 0.84 | -16.43 | 28.26 | 44.53 | 251.42 | 0.7120 | -497.0 | -394.7 | |
| 0.43 | 2.21 | 0.30 | 1.58 | -18.38 | 28.83 | 45.09 | 248.88 | 0.7229 | -590.2 | -501.7 | |
| 0.00 | 2.21 | 0.00 | 1.57 | -18.06 | 28.63 | 44.90 | 249.28 | 0.7199 | -705.0 | -541.1 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -18.39 | 28.17 | 44.44 | 248.70 | 0.7154 | -651.0 | -579.5 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -18.70 | 28.14 | 44.41 | 248.27 | 0.7159 | -445.0 | -339.8 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -18.41 | 27.79 | 44.05 | 248.56 | 0.7111 | -720.0 | -625.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -18.31 | 27.32 | 43.59 | 248.57 | 0.7055 | -688.0 | -597.7 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -16.65 | 25.95 | 42.21 | 250.53 | 0.6851 | -549.0 | -419.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
