SDO HMI 2014-01-16 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.59 | 333.83 | 34.29 | 192.24 | -16.17 | 12.10 | 28.92 | 245.77 | 0.5113 | 912.8 | 383.5 | |
|
previous
or next observation for the same group /

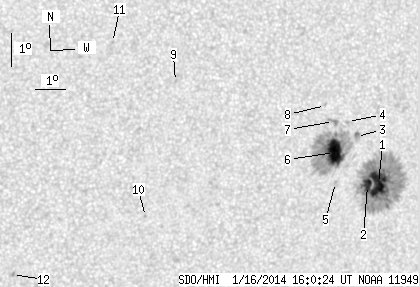

back to the solar disc SDO HMI 2014-01-16 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.82 | 198.32 | 14.41 | 115.25 | -16.52 | 12.92 | 29.74 | 245.63 | 0.5242 | 1130.0 | 338.7 | |
| 7.57 | -1.00 | 4.38 | -1.00 | -16.60 | 12.54 | 29.36 | 245.27 | 0.5194 | 1265.1 | 999999 | |
| 0.00 | 4.25 | 0.00 | 2.43 | -15.14 | 11.93 | 28.75 | 247.62 | 0.5041 | 274.0 | 85.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -14.71 | 11.55 | 28.37 | 248.24 | 0.4969 | 324.0 | 208.6 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -16.55 | 11.41 | 28.23 | 244.65 | 0.5038 | 681.0 | 527.6 | |
| 27.20 | 119.01 | 15.50 | 67.73 | -15.65 | 11.24 | 28.05 | 246.24 | 0.4969 | 1244.4 | 510.4 | |
| 0.00 | 4.59 | 0.00 | 2.61 | -14.73 | 11.07 | 27.89 | 247.93 | 0.4902 | 930.0 | 833.1 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -14.26 | 10.73 | 27.55 | 248.65 | 0.4833 | -678.0 | -585.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -13.71 | 5.63 | 22.45 | 246.32 | 0.4069 | -773.0 | -541.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -17.78 | 5.11 | 21.92 | 236.85 | 0.4264 | -933.0 | -749.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -12.60 | 3.48 | 20.30 | 247.16 | 0.3690 | -665.0 | -442.3 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -19.66 | 0.93 | 17.74 | 227.62 | 0.3903 | -758.0 | -668.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
