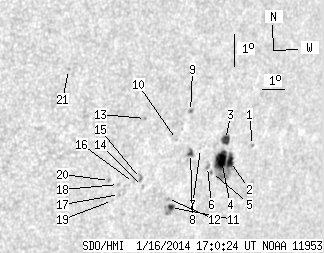

SDO HMI 2014-01-16 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.82 | 82.23 | 25.20 | 62.41 | -17.55 | 31.23 | 48.60 | 250.79 | 0.7595 | 294.4 | -83.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.87 | -16.87 | 33.40 | 50.77 | 252.09 | 0.7814 | 450.0 | 333.4 | |
| 6.12 | 41.82 | 4.76 | 32.35 | -17.41 | 32.54 | 49.90 | 251.25 | 0.7732 | 352.5 | 22.5 | |
| 5.36 | 7.06 | 4.12 | 5.43 | -16.76 | 32.06 | 49.43 | 251.99 | 0.7672 | 733.4 | 488.8 | |
| 15.98 | -2.00 | 12.32 | -2.00 | -17.40 | 32.10 | 49.47 | 251.17 | 0.7686 | 803.3 | 999999 | |
| 0.34 | 1.11 | 0.26 | 0.85 | -17.79 | 31.77 | 49.14 | 250.61 | 0.7658 | 515.8 | 438.6 | |
| 0.00 | 2.21 | 0.00 | 1.69 | -17.62 | 31.52 | 48.88 | 250.78 | 0.7628 | 702.0 | 632.1 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -17.10 | 31.00 | 48.37 | 251.35 | 0.7564 | 517.0 | 421.0 | |
| 2.21 | 3.83 | 1.65 | 2.86 | -17.28 | 30.60 | 47.97 | 251.04 | 0.7523 | 709.7 | 560.1 | |
| 0.43 | 2.21 | 0.31 | 1.64 | -16.02 | 30.19 | 47.55 | 252.62 | 0.7455 | 709.0 | 614.7 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -16.89 | 29.83 | 47.20 | 251.39 | 0.7431 | -611.0 | -492.1 | |
| 2.38 | 8.33 | 1.78 | 6.23 | -18.95 | 30.27 | 47.64 | 248.77 | 0.7521 | -676.6 | -591.0 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -18.69 | 30.04 | 47.41 | 249.06 | 0.7490 | -645.0 | -506.4 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -16.35 | 28.27 | 45.63 | 251.80 | 0.7245 | -582.0 | -453.1 | |
| 0.00 | 1.70 | 0.00 | 1.24 | -18.39 | 28.79 | 46.16 | 249.15 | 0.7347 | -525.0 | -431.5 | |
| 0.00 | 2.89 | 0.00 | 2.09 | -18.15 | 28.62 | 45.99 | 249.43 | 0.7323 | -766.0 | -627.6 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -18.29 | 28.35 | 45.72 | 249.18 | 0.7297 | -562.0 | -543.2 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -18.69 | 27.86 | 45.23 | 248.52 | 0.7251 | -628.0 | -500.4 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -18.39 | 27.72 | 45.09 | 248.88 | 0.7228 | -677.0 | -621.2 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -18.88 | 27.62 | 44.99 | 248.18 | 0.7229 | -548.0 | -482.1 | |
| 0.00 | 1.28 | 0.00 | 0.90 | -18.29 | 27.29 | 44.66 | 248.90 | 0.7177 | -682.0 | -611.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -15.06 | 24.64 | 42.01 | 252.78 | 0.6789 | 544.0 | 504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
