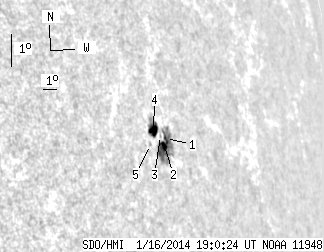

SDO HMI 2014-01-16 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.30 | 54.48 | 13.03 | 63.39 | 6.03 | 45.50 | 63.97 | 278.93 | 0.9064 | -607.8 | -255.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-16 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.59 | 37.74 | 0.70 | 44.24 | 6.11 | 45.80 | 64.27 | 278.98 | 0.9087 | -336.0 | -214.9 | |
| 3.40 | -1.00 | 3.97 | -1.00 | 5.90 | 45.68 | 64.15 | 278.76 | 0.9076 | -667.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.48 | 6.18 | 45.47 | 63.94 | 279.10 | 0.9063 | -372.0 | -330.0 | |
| 7.31 | 14.62 | 8.36 | 16.71 | 6.30 | 45.02 | 63.50 | 279.30 | 0.9032 | -637.0 | -405.6 | |
| 0.00 | 0.85 | 0.00 | 0.96 | 5.86 | 44.73 | 63.20 | 278.86 | 0.9005 | -554.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
