SDO HMI 2014-01-16 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.53 | 330.95 | 30.88 | 194.77 | -16.16 | 12.12 | 31.14 | 247.08 | 0.5415 | 984.0 | 381.2 | |
|
previous
or next observation for the same group /

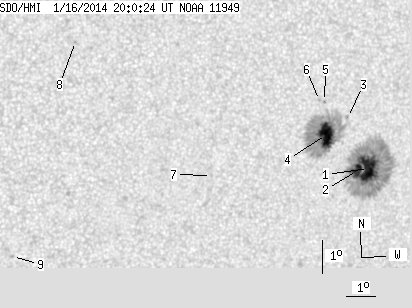

back to the solar disc SDO HMI 2014-01-16 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.78 | 204.40 | 13.51 | 121.33 | -16.51 | 12.86 | 31.88 | 246.86 | 0.5529 | 1107.6 | 325.3 | |
| 7.48 | -1.00 | 4.42 | -1.00 | -16.59 | 12.47 | 31.50 | 246.53 | 0.5481 | 1252.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -15.01 | 11.85 | 30.87 | 249.01 | 0.5330 | -7.0 | 67.5 | |
| 22.27 | 120.69 | 12.95 | 70.10 | -15.55 | 11.19 | 30.21 | 247.70 | 0.5261 | 1273.3 | 503.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -14.57 | 10.96 | 29.99 | 249.40 | 0.5189 | 846.0 | 811.4 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -14.55 | 10.78 | 29.81 | 249.35 | 0.5163 | 816.0 | 644.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -16.93 | 7.39 | 26.41 | 242.68 | 0.4810 | -691.0 | -583.0 | |
| 0.00 | 0.42 | 0.00 | 0.23 | -13.06 | 2.38 | 21.41 | 247.02 | 0.3879 | -835.0 | -608.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -19.58 | 1.03 | 20.05 | 231.02 | 0.4173 | -828.0 | -685.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
