SDO HMI 2014-01-16 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.73 | 53.11 | 14.10 | 64.30 | 6.05 | 45.43 | 65.01 | 278.80 | 0.9137 | -522.1 | -215.3 | |
|
previous
or next observation for the same group /

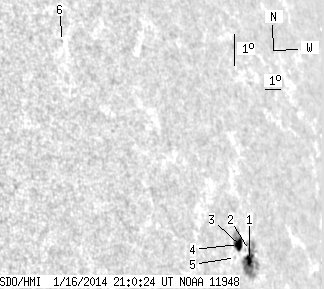

back to the solar disc SDO HMI 2014-01-16 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.42 | 35.61 | 5.38 | 43.57 | 5.86 | 45.69 | 65.27 | 278.55 | 0.9154 | -599.5 | -173.8 | |
| 0.68 | -1.00 | 0.83 | -1.00 | 6.16 | 45.76 | 65.34 | 278.87 | 0.9162 | -273.1 | 999999 | |
| 0.00 | 1.10 | 0.00 | 1.34 | 6.14 | 45.47 | 65.05 | 278.89 | 0.9142 | -456.0 | -393.8 | |
| 6.63 | 15.13 | 7.89 | 18.00 | 6.28 | 45.01 | 64.59 | 279.12 | 0.9111 | -619.6 | -345.9 | |
| 0.00 | 0.85 | 0.00 | 1.00 | 5.87 | 44.71 | 64.29 | 278.72 | 0.9085 | -550.0 | -458.2 | |
| 0.00 | 0.42 | 0.00 | 0.39 | 11.76 | 35.91 | 55.49 | 287.14 | 0.8464 | 419.0 | 425.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
