SDO HMI 2014-01-16 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.34 | 321.44 | 35.71 | 190.14 | -16.14 | 12.05 | 31.63 | 247.39 | 0.5478 | 1042.2 | 365.3 | |
|
previous
or next observation for the same group /

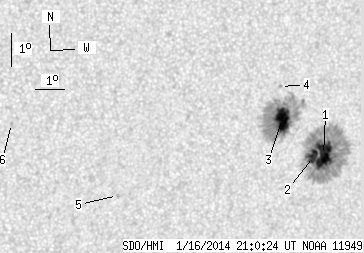

back to the solar disc SDO HMI 2014-01-16 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.62 | 190.81 | 16.49 | 113.93 | -16.53 | 12.82 | 32.40 | 247.10 | 0.5598 | 1058.6 | 307.9 | |
| 8.92 | -1.00 | 5.31 | -1.00 | -16.60 | 12.47 | 32.05 | 246.80 | 0.5555 | 1203.3 | 999999 | |
| 23.80 | 126.72 | 13.91 | 74.02 | -15.51 | 11.17 | 30.74 | 248.06 | 0.5332 | 1233.5 | 472.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -14.56 | 10.94 | 30.52 | 249.69 | 0.5263 | 864.0 | 654.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.03 | 5.80 | 25.38 | 239.73 | 0.4739 | -738.0 | -618.9 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -15.97 | 1.96 | 21.54 | 240.37 | 0.4078 | -785.0 | -588.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
