SDO HMI 2014-01-17 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.74 | 68.74 | 17.34 | 60.20 | -17.52 | 31.29 | 55.25 | 251.96 | 0.8260 | 278.5 | 55.8 | |
|
previous
or next observation for the same group /

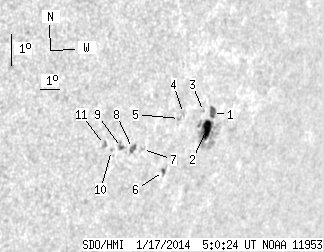

back to the solar disc SDO HMI 2014-01-17 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.17 | 47.21 | 3.73 | 42.28 | -16.91 | 32.27 | 56.24 | 252.84 | 0.8346 | 519.9 | 187.1 | |
| 10.80 | -1.00 | 9.65 | -1.00 | -17.43 | 32.18 | 56.14 | 252.20 | 0.8343 | 700.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -16.91 | 31.77 | 55.74 | 252.78 | 0.8300 | 644.0 | 587.6 | |
| 0.00 | 1.70 | 0.00 | 1.46 | -17.04 | 30.74 | 54.71 | 252.50 | 0.8205 | 641.0 | 450.8 | |
| 0.00 | 1.70 | 0.00 | 1.46 | -17.20 | 30.60 | 54.56 | 252.28 | 0.8193 | 679.0 | 606.5 | |
| 1.19 | 3.40 | 1.03 | 2.93 | -18.83 | 30.48 | 54.45 | 250.28 | 0.8202 | -565.1 | -435.7 | |
| 0.00 | 1.62 | 0.00 | 1.35 | -18.25 | 29.10 | 53.07 | 250.79 | 0.8062 | -533.0 | -401.5 | |
| 2.47 | 4.51 | 2.03 | 3.71 | -18.25 | 28.59 | 52.55 | 250.70 | 0.8011 | -566.9 | -385.3 | |
| 1.11 | 3.74 | 0.90 | 3.04 | -18.25 | 28.03 | 51.99 | 250.60 | 0.7956 | -658.8 | -635.1 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -18.37 | 27.57 | 51.54 | 250.37 | 0.7912 | -666.0 | -618.3 | |
| 0.00 | 2.81 | 0.00 | 2.24 | -18.21 | 27.16 | 51.12 | 250.49 | 0.7868 | -640.0 | -575.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
