SDO HMI 2014-01-17 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.83 | 276.67 | 30.73 | 173.86 | -16.10 | 11.87 | 36.92 | 249.78 | 0.6172 | 816.0 | 358.5 | |
|
previous
or next observation for the same group /

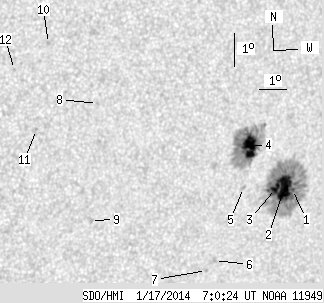

back to the solar disc SDO HMI 2014-01-17 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 167.93 | 0.76 | 106.76 | -16.54 | 12.99 | 38.04 | 249.50 | 0.6330 | 408.1 | 307.3 | |
| 23.05 | -1.00 | 14.65 | -1.00 | -16.49 | 12.67 | 37.72 | 249.46 | 0.6288 | 1047.3 | 999999 | |
| 4.85 | -1.00 | 3.07 | -1.00 | -16.54 | 12.33 | 37.38 | 249.27 | 0.6246 | 1224.7 | 999999 | |
| 19.74 | 96.56 | 12.25 | 59.84 | -15.33 | 11.07 | 36.13 | 250.74 | 0.6046 | 1144.3 | 522.7 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -16.57 | 11.10 | 36.15 | 248.76 | 0.6090 | 543.0 | 482.0 | |
| 0.00 | 2.13 | 0.00 | 1.33 | -18.82 | 10.51 | 35.56 | 244.95 | 0.6100 | 641.0 | 516.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -19.13 | 10.28 | 35.33 | 244.34 | 0.6084 | 706.0 | 612.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -14.29 | 5.33 | 30.39 | 250.21 | 0.5231 | -688.0 | -549.4 | |
| 0.00 | 2.72 | 0.00 | 1.60 | -17.80 | 5.68 | 30.73 | 244.07 | 0.5432 | -741.0 | -618.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -12.57 | 3.40 | 28.45 | 252.63 | 0.4892 | -786.0 | -669.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -15.15 | 3.32 | 28.37 | 247.53 | 0.4985 | -750.0 | -605.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -13.38 | 2.33 | 27.38 | 250.46 | 0.4767 | -754.0 | -558.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
