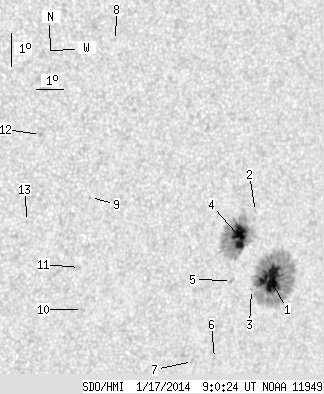

SDO HMI 2014-01-17 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.55 | 275.40 | 35.45 | 175.55 | -16.08 | 11.86 | 38.00 | 250.21 | 0.6309 | 754.5 | 301.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-17 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.86 | 166.31 | 21.80 | 107.28 | -16.51 | 12.56 | 38.70 | 249.78 | 0.6412 | 1041.0 | 245.6 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -14.51 | 11.54 | 37.68 | 252.57 | 0.6225 | -463.0 | -332.1 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -16.84 | 11.89 | 38.03 | 249.03 | 0.6338 | 316.0 | 305.3 | |
| 21.69 | 95.71 | 13.65 | 60.12 | -15.28 | 11.08 | 37.22 | 251.20 | 0.6187 | 1113.1 | 477.1 | |
| 0.00 | 2.13 | 0.00 | 1.34 | -16.61 | 11.06 | 37.20 | 249.09 | 0.6225 | 415.0 | 409.4 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -18.99 | 10.97 | 37.11 | 245.38 | 0.6299 | 498.0 | 417.1 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -19.12 | 10.15 | 36.29 | 244.81 | 0.6203 | 627.0 | 418.5 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -9.67 | 5.67 | 31.81 | 259.36 | 0.5308 | -567.0 | -513.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -14.36 | 5.39 | 31.53 | 250.60 | 0.5393 | -729.0 | -570.6 | |
| 0.00 | 1.87 | 0.00 | 1.11 | -17.73 | 5.70 | 31.84 | 244.83 | 0.5574 | -809.0 | -654.4 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -16.47 | 5.35 | 31.49 | 246.82 | 0.5471 | -689.0 | -543.2 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -12.56 | 3.37 | 29.52 | 253.12 | 0.5046 | -798.0 | -637.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -15.17 | 3.28 | 29.42 | 248.09 | 0.5132 | -644.0 | -504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
