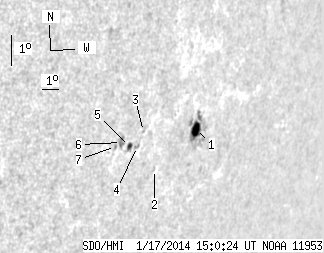

SDO HMI 2014-01-17 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.73 | 50.43 | 11.94 | 50.90 | -17.72 | 31.10 | 60.53 | 252.32 | 0.8721 | 108.9 | -59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-17 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.35 | 34.61 | 9.71 | 36.07 | -17.49 | 32.16 | 61.59 | 252.68 | 0.8807 | 557.7 | 125.5 | |
| 0.00 | 1.36 | 0.00 | 1.34 | -18.85 | 30.33 | 59.76 | 250.96 | 0.8670 | -338.0 | -271.5 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -17.77 | 29.06 | 58.49 | 252.08 | 0.8554 | -306.0 | -308.3 | |
| 0.00 | 2.38 | 0.00 | 2.26 | -18.24 | 28.95 | 58.38 | 251.52 | 0.8549 | -461.0 | -366.7 | |
| 2.38 | 4.76 | 2.23 | 4.46 | -18.27 | 28.49 | 57.92 | 251.43 | 0.8510 | -526.1 | -381.6 | |
| 0.00 | 5.36 | 0.00 | 4.95 | -18.18 | 27.98 | 57.41 | 251.48 | 0.8464 | -694.0 | -555.4 | |
| 0.00 | 1.36 | 0.00 | 1.25 | -18.32 | 27.70 | 57.14 | 251.28 | 0.8441 | -598.0 | -536.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
