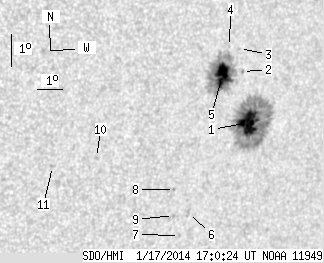

SDO HMI 2014-01-17 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.90 | 239.43 | 33.83 | 162.45 | -16.09 | 11.81 | 42.35 | 251.47 | 0.6849 | 869.4 | 314.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-17 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.84 | 146.56 | 20.44 | 100.62 | -16.47 | 12.42 | 42.96 | 251.08 | 0.6932 | 992.0 | 242.3 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -14.97 | 11.78 | 42.32 | 253.09 | 0.6821 | 395.0 | 351.2 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -14.29 | 11.50 | 42.03 | 254.02 | 0.6773 | -195.0 | -103.9 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -14.25 | 11.08 | 41.62 | 253.98 | 0.6721 | 560.0 | 492.9 | |
| 20.06 | 80.51 | 13.39 | 53.68 | -15.10 | 10.99 | 41.53 | 252.71 | 0.6727 | 1083.2 | 472.9 | |
| 0.00 | 2.55 | 0.00 | 1.72 | -19.34 | 10.74 | 41.28 | 246.49 | 0.6812 | 514.0 | 512.7 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -20.02 | 10.58 | 41.12 | 245.46 | 0.6816 | 557.0 | 471.4 | |
| 0.00 | 1.28 | 0.00 | 0.85 | -18.64 | 9.96 | 40.49 | 247.22 | 0.6697 | 757.0 | 537.1 | |
| 0.00 | 1.45 | 0.00 | 0.97 | -19.43 | 10.15 | 40.68 | 246.15 | 0.6745 | 814.0 | 659.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -17.83 | 6.62 | 37.16 | 247.19 | 0.6261 | -208.0 | -255.5 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -18.18 | 5.01 | 35.55 | 245.96 | 0.6071 | -737.0 | -588.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
