SDO HMI 2014-01-17 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.97 | 40.40 | 11.89 | 42.99 | -17.17 | 30.79 | 62.43 | 253.11 | 0.8868 | 115.0 | 88.7 | |
|
previous
or next observation for the same group /

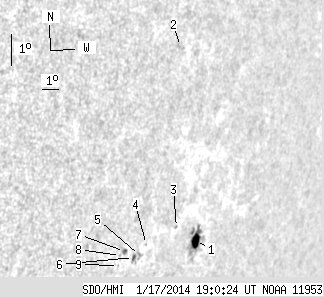

back to the solar disc SDO HMI 2014-01-17 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.50 | 24.57 | 9.46 | 27.30 | -17.49 | 32.11 | 63.75 | 252.84 | 0.8972 | 498.5 | 302.4 | |
| 0.00 | 3.83 | 0.00 | 3.75 | -11.87 | 28.37 | 60.01 | 259.04 | 0.8654 | 28.0 | 93.5 | |
| 0.00 | 1.11 | 0.00 | 1.17 | -17.20 | 30.62 | 62.26 | 253.06 | 0.8858 | 462.0 | 346.5 | |
| 0.00 | 0.68 | 0.00 | 0.69 | -17.84 | 29.03 | 60.68 | 252.22 | 0.8736 | -259.0 | -227.9 | |
| 0.00 | 3.06 | 0.00 | 3.07 | -18.19 | 28.79 | 60.43 | 251.79 | 0.8719 | -451.0 | -352.3 | |
| 1.28 | 2.64 | 1.27 | 2.62 | -18.28 | 28.46 | 60.11 | 251.66 | 0.8693 | -624.3 | -516.4 | |
| 1.19 | 2.72 | 1.16 | 2.66 | -18.14 | 27.82 | 59.47 | 251.76 | 0.8639 | -599.9 | -508.1 | |
| 0.00 | 1.11 | 0.00 | 1.07 | -18.27 | 27.65 | 59.30 | 251.59 | 0.8626 | -602.0 | -460.8 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -18.57 | 27.70 | 59.34 | 251.24 | 0.8633 | -348.0 | -303.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
